Introduction

Improv is a cross-platform multidimensional spreadsheet written in Rust, in the line of Lotus Improv and Quantrix. It separates three things a traditional grid tangles together:

• Structure: the named dimensions of a model (categories and their items).
• Logic: formulas over dimensions, not cell addresses.
• Data: the raw input values.

You model in named categories, items and measures instead of A1 cell coordinates:

Revenue = Price * Quantity
Total   = SUM(Revenue OVER Time)

Derived values flow through a differential-dataflow graph, so recalculation is always incremental: an edit propagates only to the cells it actually affects.

One model, many ways in

The same model opens in a NeXTSTEP-style desktop GUI, a terminal UI, a scriptable CLI, a streaming pipe, a JSON HTTP server, and inside Postgres, where pg_improv keeps results current as your tables change and LANGUAGE improv turns a formula into a SQL function. A model is a single store file, or lives in a Postgres database. Ways to Use Improv says which to reach for and when.

Status

Version 0.10.0 builds and passes its tests on Linux, macOS and Windows; the Postgres extension supports Postgres 15 to 18. External functions in Python, R, Julia or Pure run under a bubblewrap sandbox on Linux; WebAssembly functions run in-process with fuel and memory limits. On other systems they are refused unless the operator sets IMPROV_EXTFN_ALLOW_UNSANDBOXED=1. The GUI has no Save As, Open or Print yet, and the Postgres connection has no TLS (use a loopback port or an SSH tunnel). See the changelog for what changed in each release.

Reading order

1. Ways to Use Improv: pick a front end.
2. The Improv Model: categories, items, measures, coordinates.
3. Getting Started: build a model from the CLI.
4. The Formula Language: dimension-aware formulas and aggregation.
5. The Desktop GUI and Improv in Postgres.
6. Architecture & Design and Storage & Persistence: how it works inside.

Ways to Use Improv

Improv is one modeling engine with several front ends. They all work on the same model: categories, items, measures, formulas, input cells and saved views. A model built in one opens in every other. Pick the one that fits the job, and switch when the job changes.

The model, wherever it lives

A store file (model.db) is a single SQLite file holding the model as Mentat datoms: one file to copy, mail or check in. Every front end takes its path.

A Postgres model is named by a URL instead of a path:

postgres://user@host/database?model=plan

Pass that URL to the CLI, TUI, GUI or server and they work on the model stored in that database's improv schema. When the pg_improv extension is installed, input measures can be bound to columns of your own tables: the GUI then edits those rows, and SQL sees every result. See Improv in Postgres.

Two writers never silently overwrite each other. If someone else saved after you loaded, your save is refused with a conflict; choose File ▸ Revert to Saved (GUI) or press R (TUI) to pick up their changes, then redo yours.

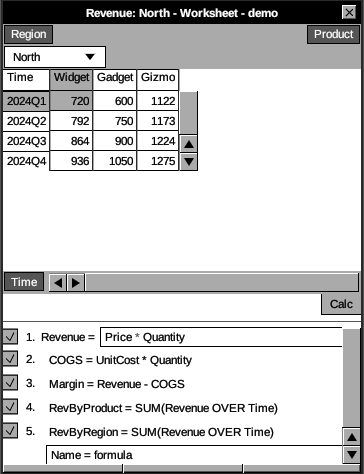

The desktop GUI (improv-gui)

Use it for: building and exploring a model by hand. You see several views at once, pivot by dragging, chart, and watch derived cells recompute as you type.

improv-gui sample.db
improv-gui 'postgres://me@127.0.0.1/sales?sslmode=disable&model=plan'

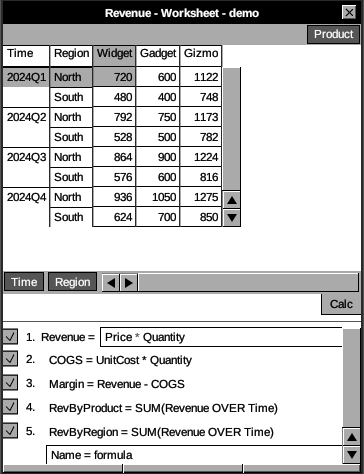

• Pivot: drag a category tile between a worksheet's strips. Page tiles go top-left, column tiles top-right, row tiles in the bottom strip.
• Edit: double-click a cell. Derived cells are read-only; hover one to see its formula.
• Add a formula: type Margin = Revenue - COGS on the last line of the formula list.
• More views: Worksheet ▸ Add Matrix opens another worksheet on the same model; Save View keeps the arrangement.

Every change is saved as you make it. The Desktop GUI walks through each window.

The terminal UI (improv-tui)

Use it for: the same pivot-and-edit loop without a display, over SSH, or in a tmux pane next to your logs.

improv-tui sample.db

The CLI (improv)

Use it for: anything you want to repeat. Build a model from a script, load a CSV or SQL query into a measure, evaluate a formula in CI, export results, or check a model into git as the script that builds it.

improv init m.db
improv add-category m.db 1 Time;    improv add-item m.db 10 1 Q1
improv add-category m.db 2 Product; improv add-item m.db 20 2 Widget
improv add-measure m.db 100 Price    number input Product
improv add-measure m.db 101 Quantity number input Time Product
improv set m.db 100 10  --at Product=Widget
improv set m.db 101 100 --at Time=Q1,Product=Widget
improv define m.db 102 "Revenue = Price * Quantity"
improv eval m.db 102

It also imports and exports CSV and SQLite (import-csv, import-sql, refresh-sql, export-csv, export-sql), runs Python functions in a sandbox (register-ext, CALL(...)), and keeps external measures fresh on a schedule (serve-refresh). Getting Started is a tutorial; man improv lists every command.

Streaming (improv stream)

Use it for: a live feed. Something produces new numbers, and you want the derived results that change, as they change, without recomputing the model.

tail -F prices.log | improv stream m.db Revenue Margin | your-consumer

Each input line is <measure> <value> [Cat=Item,...]. Improv applies it to a live incremental engine and prints only the target cells it changed:

$ printf 'Price 15 Product=Widget\nQuantity 8 Time=Q1,Product=Widget\n' \
    | improv stream m.db Revenue
Revenue Time=Q1, Product=Widget = 1500
Revenue Time=Q1, Product=Widget = 120

(Price 15 × the stored Quantity 100, then 15 × the new 8.)

A bad line is reported on stderr and skipped. At end of input the final state is saved to the model.

In Postgres (pg_improv)

Use it for: data that already lives in Postgres. Bind your table's columns to categories and measures, define formulas, and read results from ordinary tables, with no export step and no second copy.

CREATE EXTENSION pg_improv;
SELECT improv.create_model('plan');
SELECT improv.bind_category('plan', 'Time',    'sales', 'quarter');
SELECT improv.bind_category('plan', 'Product', 'sales', 'product');
SELECT improv.bind_measure ('plan', 'Price',    'sales', 'price');
SELECT improv.bind_measure ('plan', 'Quantity', 'sales', 'qty');
SELECT improv.define('plan', 'Revenue = Price * Quantity');
SELECT * FROM improv_plan.revenue;     -- kept current as sales changes

Choose how results follow your writes:

• logical (default): a background worker applies committed changes incrementally, so writers pay nothing. At 100k cells a one-row change is visible about 50 ms after commit.
• trigger: results update inside the writer's own transaction.
• improv.recalc(): results update when you call it, in your snapshot.

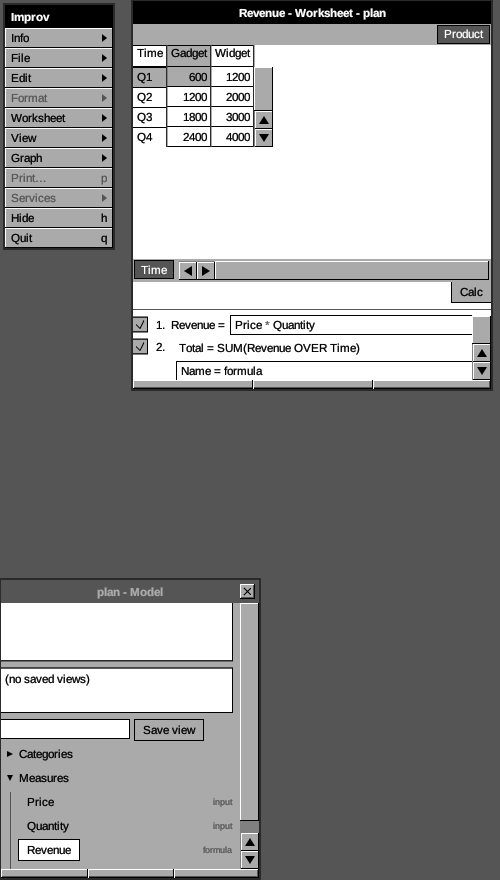

Open the same model in the GUI or TUI with its postgres://…?model=plan URL: editing a cell there updates the row in sales. Improv in Postgres covers setup, value types, aggregated bindings and durability, and A Family's Finances is a complete worked example.

In DuckDB (the improv extension)

Use it for: analytics over data DuckDB already reads (tables, Parquet, CSV): a formula as a column, or a model over a table, inside one query. Nothing is stored; each query reads its source and computes.

LOAD improv;
SELECT improv_calc('ROUND(PMT(rate/12, n, -pv), 2)',
                   json_object('rate', rate, 'n', n, 'pv', pv)) FROM loans;
SELECT * FROM improv('sales', '
  category Time = year
  category Product = product
  input Price = price
  input Quantity = qty sum
  Revenue = Price * Quantity
  Share = Revenue / SUM(Revenue OVER Product)');

improv(...) returns one row per computed cell (measure, a column per category, value, value_text), so the result joins and pivots like any table. improv_functions() lists the built-in functions. Improv in DuckDB has the details.

SQL functions (LANGUAGE improv)

Use it for: a calculation you want in plain SQL, written as a formula. No model is needed.

CREATE FUNCTION bonus(sales float8, target float8) RETURNS float8
  LANGUAGE improv IMMUTABLE AS $$
    Ratio = sales / target
    MAX2(Ratio - 1, 0) * 1000
  $$;
SELECT rep, bonus(sales, target) FROM quota;

Arguments are the inputs, by name; each Name = expr line is an intermediate; the last line is the result. A call costs about 0.14–0.24 µs (this two-line bonus is the 0.24), about what PL/pgSQL costs.

The HTTP server (improv-server)

Use it for: letting another program read a model, ask what-if questions, or write input cells over HTTP.

With the model m.db from the CLI example, after the streaming example set Price to 15:

IMPROV_API_TOKEN=secret improv-server m.db 127.0.0.1:3000 &
curl -H 'Authorization: Bearer secret' -X POST localhost:3000/measures/102/eval \
  -H 'content-type: application/json' \
  -d '{"edits":[{"measure":101,"coord":[[1,10],[2,20]],"value":90}]}'
# [{"coord":[["Product","Widget"],["Time","Q1"]],"value":1350.0}]

An edit names its measure and coordinate by id ([[category, item], …]); the answer comes back by name. /eval computes through the live engine and writes nothing unless you ask it to ("persist": true). The HTTP Server lists the routes, tokens and limits.

Choosing quickly

• One person, a model to think with: GUI, or the TUI over SSH.
• A model that is code: a CLI script in git, then open it in the GUI.
• A feed of numbers: improv stream.
• Data in Postgres, results for SQL users: pg_improv, logical mode. Use trigger if a writer must read its own results in the same transaction.
• A formula as a SQL function: LANGUAGE improv.
• Data in DuckDB, Parquet or CSV, answers in one query: the DuckDB extension (improv_calc, improv(source, model)).
• Another service needs answers: improv-server.

The Improv Model

Improv models a problem as a multidimensional cube rather than a flat grid. The vocabulary is small and maps directly onto the types in improv_core_model.

Categories

A category is a dimension of the model — for example Time, Product, or Region. Each category has a stable numeric id (CategoryId) and a human-readable name.

Items

An item is one member of a category: 2025 and 2026 are items of Time; Widget A and Widget B are items of Product. Each item has an id (ItemId), the id of the category it belongs to, and a name.

Measures

A measure is a named variable indexed by a subset of the categories — its tensor dimensions. Price might be defined over [Product], while Quantity and Revenue are defined over [Time, Product].

A measure is one of two kinds:

• Input — raw data you enter.
• Derived — computed from a formula.

Every measure declares a value type: Number, Boolean, Text, DateTime, or Enum. The engine computes with all of them: dates are written as #2025-01-31# literals in formulas, come from date/timestamp columns in Postgres, and display as RFC 3339; an Enum computes as its number. The GUI edits DateTime cells; the TUI and the CLI's add-measure and set take number, boolean or text (CSV and SQL imports bring in numbers).

Coordinates

A coordinate names one cell of a measure's tensor by mapping categories to items — for example {Time=2025, Product=Widget A}. Internally a coordinate is an ordered map (BTreeMap<CategoryId, ItemId>), so it is insertion-order-independent: {Time=2025, Product=WidgetA} and {Product=WidgetA, Time=2025} are the same coordinate. That ordering is what lets the engine derive a stable dataflow key (see Architecture).

Input data lives in the model as a map from (measure, coordinate) to a value. Only input measures have entries; derived measures are computed by the engine.

Structure, logic, and data

The payoff of naming everything is that the three concerns move independently:

• Rename freely. Names are cosmetic; formulas bind to ids, not names, so renaming a category or measure never breaks a formula.
• Add items without touching formulas. Adding 2027 to Time extends every measure defined over Time automatically — a formula like Revenue = Price * Quantity needs no edit.
• Edit logic in one place. A formula is defined once per measure, over dimensions, instead of being copied down a column of cells.

The canonical example

Throughout these docs the running example is a Time × Product revenue model:

Revenue[Time, Product] = Price[Product] * Quantity[Time, Product]

Price is defined over Product only, so it is broadcast over Time: every year reuses the same per-product price. With

and

the engine computes:

These are the values the engine's test suite checks against.

Getting Started

Build

Improv is a Cargo workspace. From the repository root:

cargo build --workspace
cargo test  --workspace

The improv CLI binary is produced by the improv_cli crate. You can run it either through Cargo:

cargo run -p improv_cli -- <command> [args]

or directly once built:

./target/debug/improv <command> [args]

The examples below use the built binary.

The CLI

The CLI is a headless front-end over the model store. Every subcommand opens a store (a single SQLite file, a Postgres model named by a postgres://…?model= URL, or an in-memory database if you pass ""), mutates the loaded model, and saves it back.

Run improv help for the full command list. The commands, exactly as accepted by the binary, are:

Notes:

• Ids (<id>, <category-id>, <measure-id>) are plain numbers.
• add-measure adds an input measure; the trailing input keyword is required, and any further arguments are category names declaring the measure's dimensions (e.g. ... input Time Product). The type (number, boolean, text) declares how set parses the value.
• add-derived adds a formula measure from Improv formula text (e.g. "Price * Quantity" or "SUM(Revenue OVER Time)"); its categories are inferred from the measures it references. Compute it with eval.
• set --at maps category names to item names. Pairs may be comma-joined (--at Time=2025,Product=WidgetA), space-separated (--at Time=2025 Product=WidgetA), or given as repeated --at flags; they are merged, and a category may appear only once. Omit --at for a scalar (zero-dimensional) cell.
• set parses the value according to the measure's declared type: a number measure wants a float, a boolean measure wants true/false, a text measure takes the string verbatim.

Quick start

Build the Time × Product revenue model from the model chapter, one command at a time:

DB=model.db

improv init          "$DB"
improv add-category  "$DB" 1 Time
improv add-category  "$DB" 2 Product
improv add-item      "$DB" 10 1 2025
improv add-item      "$DB" 11 1 2026
improv add-item      "$DB" 20 2 WidgetA
improv add-item      "$DB" 21 2 WidgetB
improv add-measure   "$DB" 100 Price    number input Product
improv add-measure   "$DB" 101 Quantity number input Time Product
improv set           "$DB" 100 10 --at Product=WidgetA
improv set           "$DB" 100 20 --at Product=WidgetB
improv set           "$DB" 101 100 --at Time=2025,Product=WidgetA
improv set           "$DB" 101 50  --at Time=2025,Product=WidgetB
improv set           "$DB" 101 120 --at Time=2026,Product=WidgetA
improv set           "$DB" 101 80  --at Time=2026,Product=WidgetB

Inspect the model:

improv list "$DB"

categories:
  1 Time
  2 Product
items:
  10 2025 (category 1)
  11 2026 (category 1)
  20 WidgetA (category 2)
  21 WidgetB (category 2)
measures:
  100 Price [input] Number
  101 Quantity [input] Number
views:
inputs:
  100::{Product=WidgetA} = 10
  100::{Product=WidgetB} = 20
  101::{Time=2025,Product=WidgetA} = 100
  101::{Time=2025,Product=WidgetB} = 50
  101::{Time=2026,Product=WidgetA} = 120
  101::{Time=2026,Product=WidgetB} = 80

Save a named view (the GUI opens it from the model browser). --rows and --cols stack category names; leftover categories become pages:

improv save-view "$DB" 1 "Quantity by year" Quantity --rows Time --cols Product

Look at a single measure and its cells:

improv show "$DB" 100

measure 100 Price [input] Number
  cells:
    100::{Product=WidgetA} = 10
    100::{Product=WidgetB} = 20

Dump the whole model as JSON (useful for scripting or diffing):

improv export "$DB"

Define a derived measure and compute it

Define Revenue from a textual formula, then evaluate it through the engine:

improv add-derived "$DB" 102 Revenue "Price * Quantity"
improv eval        "$DB" 102

eval 102 'Revenue' (4 cells):
  Revenue[Time=2025, Product=WidgetA] = 1000
  Revenue[Time=2025, Product=WidgetB] = 1000
  Revenue[Time=2026, Product=WidgetA] = 1200
  Revenue[Time=2026, Product=WidgetB] = 1600

Derived measures can build on other derived measures. Roll Revenue up over Time with an aggregation:

improv add-derived "$DB" 103 RevByProduct "SUM(Revenue OVER Time)"
improv eval        "$DB" 103

eval 103 'RevByProduct' (2 cells):
  RevByProduct[Product=WidgetA] = 2200
  RevByProduct[Product=WidgetB] = 2600

Beyond the CLI

Open the same file interactively: improv-tui model.db in a terminal, or improv-gui model.db on the desktop, where the saved view shows up in the model browser. Feed it new numbers with improv stream model.db Revenue. Ways to Use Improv compares the front ends, and man improv lists every CLI command, including CSV and SQL import and export and sandboxed Python functions.

Running Improv

This page is the operator's quick reference: build, run each front end, run the tests, check coverage, and the security knobs. The getting-started guide walks through modeling itself.

Build

# Nix (recommended): toolchain + GUI runtime libs + dev tools
nix develop
cargo build --workspace --release

# Or plain Debian/Ubuntu (what the EC2 dev box used):
sudo apt-get install -y build-essential pkg-config libssl-dev libsqlite3-dev \
  libxkbcommon-x11-0 libgl1 libegl1 libgl1-mesa-dri python3 bubblewrap
curl -sSf https://sh.rustup.rs | sh -s -- -y --default-toolchain 1.97.0   # MSRV; any newer stable works
cargo build --workspace --release

The binaries land in target/release/: improv (CLI), improv-tui, improv-gui and improv-server.

A model to play with

IMPROV=target/release/improv bash docs/demo/sample-model.sh sample.db   # Time × Product × Region
target/release/improv list sample.db

Or build one by hand:

I=target/release/improv
$I init m.db
$I add-category m.db 1 Time;    $I add-item m.db 10 1 Q1; $I add-item m.db 11 1 Q2
$I add-category m.db 2 Product; $I add-item m.db 20 2 Widget
$I add-measure m.db 100 Price number input Time Product
$I add-measure m.db 101 Quantity number input Time Product
$I add-derived m.db 102 Revenue "Price * Quantity"
$I set m.db 100 10 --at Time=Q1 Product=Widget   # or --at Time=Q1,Product=Widget
$I set m.db 101 5  --at Time=Q1 --at Product=Widget
$I eval m.db 102
$I save-view m.db 1 "Revenue by quarter" 102 --rows Time --cols Product

Run each front end

Ways to Use Improv explains when to pick which.

Example server calls:

curl -s -H 'Authorization: Bearer secret' localhost:3000/measures
curl -s -H 'Authorization: Bearer secret' -X POST localhost:3000/measures/102/eval \
  -H 'content-type: application/json' -d '{"edits":[]}'

Open a Postgres-hosted model

Every front end also accepts a Postgres URL naming a model instead of a file:

improv list      'postgres://me:pw@127.0.0.1/sales?model=plan'
improv-tui       'postgres://me:pw@127.0.0.1/sales?model=plan'
improv-gui       'postgres://me:pw@127.0.0.1/sales?model=plan'
improv-server    'postgres://me:pw@127.0.0.1/sales?model=plan'

?model= is required; the other parameters go to libpq as usual. The model lives in the improv.* catalog (created on first open when the pg_improv extension isn't installed). Input measures bound to a table (improv.binding) are read from it, and their edited cells are written back to that table with UPDATE/INSERT (values only, no DDL). Unbound cells go to improv.cell. As with a file store, a save fails with "reload and retry" when another writer changed the model after you loaded it. There is no TLS in this build, so a non-loopback host needs an explicit sslmode=disable (use an SSH tunnel to a loopback port instead).

Security defaults (and how to relax them)

Everything stored in a model is treated as untrusted: a shared model can carry code or SQL.

Tests

cargo test --workspace                          # ~750 tests, ~1 min
cargo test --workspace --release -- --ignored   # stress: 5M cells verified; the 10M case needs ~7 GB

Live Postgres tests run when IMPROV_TEST_PG is set, e.g.

IMPROV_TEST_PG="host=127.0.0.1 user=improv password=improv dbname=improv_test" \
  cargo test -p improv_storage_sql -p improv_storage_pg -p improv_store

The sandbox tests need python3 and bubblewrap; without them they skip (and say so) rather than fail.

Coverage (≥ 90% functions and branches per crate)

rustup toolchain install nightly -c llvm-tools-preview
cargo install cargo-llvm-cov
scripts/coverage.sh            # prints a per-crate table; exits 1 below 90%
scripts/coverage.sh --html     # also writes target/coverage-html/html/index.html

Inline #[cfg(test)] modules are excluded from the denominator (via the coverage_nightly cfg cargo-llvm-cov sets), so the percentages measure library code. CI runs the same gate (coverage job).

Full quality gate

P=$(ls crates | grep -v '^pg_improv$' | sed 's/^/-p improv_/')   # pg_improv has its own workspace
cargo fmt $P -- --check
cargo clippy $P --all-targets --all-features -- -D warnings
cargo test --workspace
cargo deny check
typos
RUSTDOCFLAGS=-Dwarnings cargo doc --workspace --no-deps
scripts/gui-shot-check.sh       # GUI screenshot vs golden (needs Xvfb, ImageMagick, xdotool)
scripts/coverage.sh             # coverage gate (nightly)
(cd crates/pg_improv && cargo fmt --check \
  && cargo clippy --features pg17 --all-targets -- -D warnings \
  && cargo pgrx test pg17 && ./tests/logical.sh)   # the extension

The Formula Language

A formula defines a derived measure in terms of other measures and categories — never in terms of cell addresses. This is what makes logic dimension-aware: you write the rule once, and it applies across every cell of the target measure's tensor.

The formula AST lives in improv_core_model::formula. A Formula wraps an Expr, which is one of:

• Literal(Value) — a constant.
• Ref(MeasureId, DimensionSpec) — a reference to another measure, with an optional dimension projection.
• UnaryOp(op, expr) — negation (Neg) or logical not (Not).
• BinaryOp(op, left, right) — arithmetic (Add, Sub, Mul, Div), logical (And, Or), or comparison (Eq, Ne, Lt, Le, Gt, Ge).
• Call(FuncId, args) — an aggregation (SUM, AVG, MIN, MAX) or a named scalar function (ABS, ROUND, …).

Writing a formula

You write a formula as text: a target name, =, and an expression.

Revenue = Price * Quantity

The parser (improv_core_model::parser) resolves each name in the expression against the model, so every measure and category it names must exist. The target need not exist yet. An unknown name, or anything the grammar does not allow, is a parse error with a byte position; the parser never panics.

The target may carry a bracketed category list, as in Revenue[Time, Product] = …. The parser skips that list; it does not set the measure's categories.

improv add-derived <db> <id> <name> "<expression>" takes only the expression (the part after =). improv define <db> <id> "<Target> = …" takes the whole definition.

Operators and precedence

From lowest to highest precedence:

Parentheses group as usual. Keywords (AND, OR, NOT, OVER, TRUE, FALSE, function names) are case-insensitive.

= is only the assignment after the target. Inside an expression, equality is ==, and <> and != both mean not-equal. So Flag = Price == 10 is a formula, and X = Price = 10 is an error.

NOT binds looser than a comparison, as in SQL: NOT Price > 15 means NOT (Price > 15), and NOT a AND b means (NOT a) AND b.

^ follows the mathematical convention: it is right-associative and binds tighter than unary minus, so 2^3^2 is 2⁹ = 512 and -2^2 is −(2²) = −4. The spreadsheets read both the other way (64 and 4): write (2^3)^2 and (-2)^2 for their reading. The exponent may be negative (2^-1 is 0.5). 0^0 is 1, 0^-1 is #DIV/0! and a negative base with a fractional exponent is #NUM!; POWER(x, y) is the same as x ^ y.

& joins two values as text ("Q" & 3 is Q3; numbers print as they display, booleans as TRUE/FALSE). 50% is 0.5.

Type rules, checked when the formula compiles:

Errors

An error is a value, shown as the spreadsheets show it:

An operator or function given an error returns that error (the left operand, or the first argument, first). An aggregation over a category containing an error returns the error (the smallest ERROR.TYPE code if there are several). ISERROR, ISERR, ISNA and ERROR.TYPE inspect errors, and IFERROR, IFNA and CLEARERROR replace them.

A missing cell is not an error: where an input has no cell, the result has no cell either (an aggregation skips it).

Typing formulas in your language

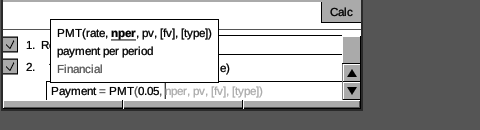

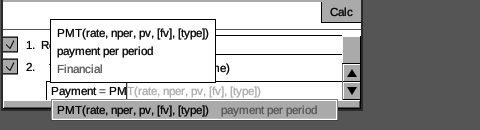

The formula bar (GUI) and improv define / add-derived (CLI) read formulas in the formula locale: IMPROV_LOCALE, else the OS locale (LANG). In German (de) a formula uses LibreOffice's German function names, a decimal comma and ; between arguments, and the GUI shows stored formulas the same way:

The English spelling is always accepted as well. Models store formulas in the English form, so a model opens the same in every locale. Measure and category names, text in "…" and OVER are never translated. English and German are the locales so far; another is a table of names (crates/core_model/src/locale/<tag>.tsv).

Literals

A literal may stand alone (X = 42) or appear inside an expression (Price * 1.07). A literal has no categories, so it broadcasts over the other operand.

Names

A bare name starts with a letter or _ and continues with letters, digits or _. Any other name goes in single quotes:

X = 'Unit Price' * 2
X = 'Bob''s Rate' + 1

Inside single quotes, write '' for one ': 'Bob''s Rate' names the measure Bob's Rate. A quoted name is always a measure or category name, never a keyword or function, so 'SUM' and 'Over' name measures. '' (empty) and an unclosed quote are errors. Single quotes are names; double quotes are text.

A qualified name like Matrix.Measure parses, but is always rejected: Improv has no matrices to qualify a name with. The error names the qualifier.

Measure references and BY

Measure[Cat, …] sets the reference's by list: keep only the listed categories. Inside an aggregation the categories it leaves out are collapsed, so SUM(Quantity[Product] OVER Time) is a per-Product total. Outside one, the list must name every category of the measure (Quantity[Time, Product]): Quantity[Product] alone is refused, because nothing would collapse Time (see Dimension projection below).

Aggregations

Total = SUM(Revenue OVER Time)

The form is AGG(Measure OVER Categories, …). The aggregations include SUM, AVERAGE (or AVG), MIN, MAX, PRODUCT, SUMSQ, over booleans AND, OR and XOR, the ordered FIRST, LAST, S and TEXTJOIN, and the statistics (COUNT, MEDIAN, STDEV, PERCENTILE, COUNTIF, CORREL, SLOPE, TTEST, …); see the Function Reference.

Total    = SUM(Revenue OVER Time, Region)        -- several categories
Others   = SUM(Revenue OVER ALL EXCEPT Product)  -- all but Product
Big      = SUM(Revenue OVER Time WHERE Revenue > 1000)
Names    = TEXTJOIN(", ", TRUE, Label OVER Product)
Opening  = FIRST(Balance OVER Time)
Spread   = STDEV(Revenue OVER Time)
Top3     = LARGE(Revenue OVER Time, 3)
Fit      = CORREL(Price, Quantity OVER Time)
Big      = COUNTIF(Revenue OVER Time, ">1000")
Sold     = SUMIFS(Revenue, Region OVER Time, "N*", Quantity, ">=10")
Rank     = RANK(Revenue OVER Product)                -- per item: keeps Product
Tier     = RANK.DENSE(Score OVER Person)             -- ties share a rank, no gaps
Buyers   = COUNTUNIQUE(Customer OVER Order)          -- distinct values

• The reduced arguments must be measure references (with an optional […] list), not expressions: SUM(Price * 2 OVER Product) is an error; define the expression as a measure first.
• OVER follows a reduced argument and applies to all of them. Several categories are separated by commas; a comma followed by anything but a category name starts the next argument (TEXTJOIN("-", TRUE, x OVER T)).
• OVER ALL EXCEPT Cat, … reduces every category of the measure but those.
• WHERE condition keeps only the cells where the condition is true; the condition may use the measure and any measure over its categories. If no cell passes, the group has no cell.
• Rows reach the reduction in item order along the reduced categories, which is what FIRST, LAST and TEXTJOIN see.
• Other arguments are parameters with one value per group: a literal, or a measure over the categories the result keeps (TEXTJOIN(Sep, TRUE, x OVER T) with Sep per Product).
• The cash-flow functions (NPV, IRR, MIRR, XNPV, XIRR, FMRR, FVSCHEDULE) read the flows in item order: the first item with a cell is period 0 (NPV discounts it one period, as Excel does). An item with no cell is skipped, not a zero flow, so the flows after it move up a period; enter 0 for a period without a flow.
• Without OVER, nothing is reduced (each cell is its own group).
• The …IF and …IFS functions take Excel's criteria: a number or boolean means equality, and text may start with =, <>, <, <=, > or >=. Text is compared without regard to case, and =/<> text takes the wildcards * (any run), ? (any one character) and ~ (the next character literally). In SUMIFS(x, c1 OVER T, k1, c2, k2) the summed measure and every criteria measure are reduced together.
• Measures reduced together join on the categories they share. Each must range over the OVER categories; any others broadcast and the result keeps them: with r over Src and M over Src × Dst, SUMPRODUCT(r, M OVER Src) is the matrix-vector product, one value per Dst.
• Per-item reductions (RANK, RANK.AVG, RANK.DENSE, PERCENTRANK, TREND, GROWTH) give one result per item of their single OVER category, and the result keeps it. RANK.DENSE is SQL's dense_rank() OVER (ORDER BY x DESC) (order 1: ASC): tied values share a rank and the next value ranks one after them, so 9, 7, 7, 4 rank 1, 2, 2, 3.
• COUNTUNIQUE (Google Sheets' name) is SQL's count(DISTINCT x): the number of distinct values among the cells, numbers by value and text case-sensitively. Neither LibreOffice nor Gnumeric has it or a dense rank.
• An error among the rows is the result, except that COUNT skips errors, COUNTA counts them, the …IF functions skip rows whose criteria cell is an error, and AGGREGATE's options 2, 3, 6 and 7 ignore them.

SUM etc. are functions only when ( follows; otherwise the word is an ordinary measure name.

Positions, neighbours and running totals

Every category has an order: its items' order. Formulas can use it.

Rank     = POSITION(Time)                          -- 1, 2, 3, …
Year     = @ITEM(Time)                             -- the item's name
Growth   = Revenue - PREV(Revenue, Time, 1, 0)     -- change since last year
Ahead    = NEXT(Revenue, Time)                     -- next year's value
Running  = SUM(Revenue OVER Time[FIRST..THIS])     -- running total
Trailing = AVERAGE(Revenue OVER Time[THIS-2..THIS])-- three-period average
ToGo     = SUM(Budget OVER Time[THIS..LAST])

• POSITION(T) is the 1-based position of each item of T; @ITEM(T) its name; @ITEMCOUNT(T) how many items T has. They are measures over T, so they broadcast like any other.
• PREV(x, T, [n = 1], [default]) is x at the n-th previous item along T, NEXT at the n-th next. Before the first item (or where that item has no cell) the result is the default, or no cell without one.
• A window OVER T[from..to] gives one result per item: the aggregation over the items from from to to, where each bound is FIRST, LAST, THIS, THIS-n or THIS+n. An empty window is #N/A.

Roles: RELABEL and SWAP

One dimension often plays two roles: Src and Dst are both Person in an interaction graph. Make each role its own category with the same item names, and move values between them:

RankBySrc  = RELABEL(Rank[Dst, Iter], Dst, Src)   -- ranges over Src × Iter
Reciprocal = W > 0 AND SWAP(W, Src, Dst) > 0      -- W[a, b] > 0 and W[b, a] > 0

• RELABEL(x, From, To) is x with category From replaced by To: each cell's From item becomes the To item with the same name. x must range over From and not over To.
• SWAP(x, A, B) exchanges two categories x ranges over: its value at A = a, B = b is x at A = b, B = a (items matched by name).
• Items are matched by name. A cell whose item has no namesake in the other category is dropped (no cell), so a role with extra items loses them: relabel to a category that has them all.
• Both are a map over the cells (a key rewrite), so they stay incremental.

LET and LAMBDA

Margin = LET(rev, Price * Quantity, cost, Unit * Quantity, (rev - cost) / rev)
Double = MAP(Quantity, LAMBDA(q, q * 2))
Square = LAMBDA(x, x * x)(Price - 1)
Running = SCAN(0, Deposits OVER Time, LAMBDA(acc, d, acc * 1.01 + d))
Final   = REDUCE(0, Deposits OVER Time, LAMBDA(acc, d, acc * 1.01 + d))

• LET(name, value, …, body) names values for the body (a later value may use an earlier name). A name shadows a measure with the same name.
• LAMBDA(p, …, body) is a function of its parameters. Call it on the spot (LAMBDA(x, x * x)(Price)) or pass it to MAP, REDUCE or SCAN.
• MAP(x, …, LAMBDA(p, …, body)) applies the body cell by cell.
• SCAN(init, x OVER T, LAMBDA(acc, v, body)) folds along T in item order: each item's result is the body with acc the previous item's result (init before the first) and v the item's value. REDUCE keeps only the last. Both are recurrences underneath, so they update incrementally.

More forms of the same kind:

Grid  = MAKEARRAY(Row, Col, LAMBDA(r, c, r * 10 + c))   -- over Row × Col
Steps = SEQUENCE(Month, 100, 5)                          -- 100, 105, 110, …
Range = BYROW(Sales OVER Product, LAMBDA(row, MAX(row) - MIN(row)))
Total = BYCOL(Sales OVER Month, LAMBDA(col, SUM(col)))

• MAKEARRAY(R, C, LAMBDA(r, c, body)) evaluates the body over R × C with r and c the item positions.
• SEQUENCE(T, [start = 1], [step = 1]) is (POSITION(T) - 1) * step + start: a category, not a count, sets its length.
• BYROW(x OVER C, LAMBDA(row, body)) runs the body once per item of x's other categories, row being x's values along C; the body must reduce it (SUM(row), MAX(row) - MIN(row)). BYCOL is the same form: in a dimensional model a row and a column differ only in the category named.

LET, LAMBDA, MAP, MAKEARRAY, SEQUENCE and BYROW expand when the formula is read: the stored formula (and what the formula bar shows) is the expanded expression. A LAMBDA cannot call itself, so every formula still terminates.

Named LAMBDAs (Excel's Name Manager functions) are defined once and called by name:

improv define model.db 1 "Margin = LAMBDA(price, cost, (price - cost) / price)"
improv define model.db 120 "Pct = Margin(Price, Cost) * 100"

A call is stored as a call, not its expansion, so redefining Margin changes every formula that uses it. A named LAMBDA reads only its parameters (pass measures as arguments), may call LAMBDAs defined before it, and never itself. They persist with the model (Mentat and Postgres stores).

A parameter the body uses where a category goes (OVER c, POSITION(c), RELABEL's categories) is a category parameter: the call passes a category name, and a parameter the body reduces (MAX(x OVER c)) takes a measure:

LOGNORM = LAMBDA(x, c, LN1P(x) / LN1P(MAX(x OVER c)))
An      = LOGNORM(Authored, Person)   -- LN1P(Authored) / LN1P(MAX(Authored OVER Person))

A parameter used both as a value and as a category is an error.

List results: INTO

A function that returns a list says where the list lands: INTO a category, whose items take the results in order.

Top = SORT(Sales OVER Product, -1 INTO Rank)   -- largest first
Ids = UNIQUE(Customer OVER Order INTO Slot)

The result keeps the measure's other categories and gains Rank: the k-th value lands at Rank's k-th item. Results beyond Rank's last item are dropped; if there are fewer, the later items have no cell. INTO must name a category the measure does not range over.

INTO R, C lays the list over two (or more) categories row by row, the last varying fastest, as Excel spills a block:

Fit  = LINEST(Sales, Price, Promo OVER Week, TRUE, TRUE INTO StatRow, StatCol)
Grid = SORT(Sales OVER Week INTO Row, Col)

Matrices are a measure over two categories: MDETERM(A OVER R, C). Matrix results (MINVERSE, MPSEUDOINVERSE, CHOLESKY, EIGEN) come row by row, so INTO R2, C2 lays them out as a block: Inv = MINVERSE(A OVER R, C INTO R2, C2).

A matrix product needs no function: operands that share a category join over it, so with A over R × K and B over K × C,

AB = A * B              -- over R × K × C
P  = SUM(AB OVER K)     -- over R × C: the product

(LINSOLVE is MINVERSE then the same product.) Two measures with no category in common are still refused, as a likely mistake.

LINEST and LOGEST take any number of x's (every measure before the options is reduced): the coefficients come last x first, then b, and with stats Excel's 5 × (k + 1) block. SORTBY(x, by1 OVER T, order1, by2, order2, …) sorts by several keys. SELECTS(values, tests OVER T, condition) keeps the values whose test meets a SUMIF-style criterion.

Lookups

A lookup is a reduction whose key is a parameter: it searches a table along a category and returns the value at the matching item.

Rate  = XLOOKUP(Grade, GradeKey OVER Band, GradeRate, 0)
Slot  = MATCH(Score, Threshold OVER Band)      -- 1-based position along Band
Third = INDEX(Sales OVER Month, 3)
Name  = SELECT(Label, Code OVER Item, Wanted)  -- Quantrix argument order
Names = SELECTLIST(Label, Code OVER Item, Wanted)  -- Wanted over its own category

The key may range over categories the table lacks: with Grade per Employee and the table per Band, Rate is per Employee, each cell looking its own grade up in the whole table. Positions (MATCH, XMATCH, INDEX) are item positions along the category, so an item with no cell still counts. A table row needs every reduced measure: an item with a key but no value is not found. The approximate modes do not assume sorted keys; they pick the nearest key (for MATCH/LOOKUP type 1, the largest ≤ the key, the last on a tie). XLOOKUP's binary search modes (±2) are the linear search. Database functions are the aggregations under their spreadsheet names, with the criteria as WHERE: DSUM(Sales OVER Region WHERE Year == 2025); DGET wants exactly one match.

Recurrences

A measure may read its own earlier values through PREV:

Balance = PREV(Balance, Time, 1, Opening) + Deposits - Withdrawals

Along Time, each period's balance starts from the previous period's (Opening, a measure per account, before the first). The engine computes it as a scan in item order, per group of the other categories, and updates it incrementally: an edit re-runs the chain it is in. Rules:

• every reference to the measure itself is PREV(itself, T, n, default) along one of its own categories (NEXT cannot refer back);
• the rest of the formula is element-wise (no aggregation or other positional function inside it; define those as measures first);
• the measures it reads together range over all of its categories (they supply its cells);
• other cycles between measures are still errors.

Every evaluation still terminates: a scan is as long as the category.

Fixed points: FIXPOINT

A measure can be the fixed point of a step: start from a value and apply the step until the value stops changing. PageRank over a person-to-person graph, with Src and Dst two roles of Person, W[Src, Dst] the edge weights, damping 0.85 and the rank of a person with no out-edge spread over everyone:

Out      = SUM(W OVER Dst)                -- out-weight per Src
M        = W / Out                        -- transition weights
Dangling = FILL(0 * Out, 1)               -- 1 where Src has no out-edge
PR       = FIXPOINT(SEQUENCE(Src, 1 / @ITEMCOUNT(Src), 0),
             LAMBDA(r, RELABEL((1 - 0.85) / @ITEMCOUNT(Src)
               + 0.85 * (FILL(SUMPRODUCT(r, M OVER Src), 0)
                         + SUMPRODUCT(r, Dangling OVER Src) / @ITEMCOUNT(Src)),
               Dst, Src)),
             100, 0.0000000001)

SUMPRODUCT(r, M OVER Src) is Σ over Src of r·M, one value per Dst, and RELABEL(…, Dst, Src) reads it back over Src for the next round.

• FIXPOINT(init, LAMBDA(r, body), [max_iter = 100], [tolerance = 1e-10]) sets r to init, then r to body evaluated at r, until the cells move by at most tolerance in total (Σ|Δ| over the cells), or max_iter rounds have run.
• Exceeding max_iter gives the last iterate, not an error, and never a hang: max_iter is a whole number from 0 to 10,000 (0 gives init). The language stays total.
• max_iter and tolerance are constant numbers. The parser reads digits and a point only, so write 1e-10 as 0.0000000001 (or 10^-10).
• r has init's type and categories, plus any the body adds: a constant init with a body over Src iterates over every Src item. Give init its categories with SEQUENCE(Src, x, 0) when the body needs r over Src to begin with (SUMPRODUCT(r, M OVER Src) does). The body must keep r's categories and type. A cell is in the result where it is in both the last iterate and its step; the convergence test treats a cell in only one of them as an infinite change.
• A FIXPOINT is a measure's whole formula, and it may not read its own measure (r stands for it). Other measures may read it, and its body may read other FIXPOINT measures.
• The engine solves it round by round. A round evaluates the body's compiled plan in memory at the iterate: the measures it reads (here M and Dangling) are fixed for the solve, the joins over them are indexed once, and a reduction's rows (which iterate cell meets which edge) are laid out once and refilled each round, as long as the coordinates stay the same. Those measures still update incrementally on the dataflow when an input changes. A body with a node the in-memory evaluator does not take (PREV, a recurrence) runs each round as one dataflow update instead. Both use the same cell operations and give the same cells bit for bit. After an edit it starts from the previous result (if that converged) and agrees with a full recompute; a FIXPOINT whose inputs did not change is not re-solved. A start that fails to converge within max_iter rounds restarts from init, so a result cut off at max_iter is the same as a fresh evaluation's.
• On 1,500 people and 100,000 edges this PageRank matches a plain power iteration to 3e-15 (L1) in 14 rounds, in 0.44 s in a release build (4 ms a round once the rows are laid out; the dataflow over the edges takes 0.25 s), and re-solves after an edge edit in 0.07 s. On 10,000 people and 1,000,000 edges: 13 rounds of 75 ms, 6.9 s in all (3.7 s of it the dataflow), 1.2 s to re-solve after an edit, 3.3 GB at peak.

Functions

Improv has the spreadsheet functions people expect, with Excel's names: ROUND(Price, 2), MOD(Units, 12), LEFT(Code, 3), SUM(a, b, c). The Function Reference lists every one, generated from the code. The argument count and types are checked when the formula is parsed and compiled: ROUND(Price, 1, 2) is a parse error that shows the signature, and LEN(Price) (a number where text is wanted) a type error.

Arguments are expressions and broadcast like a binary operator's operands: ROUND(Revenue / Units, 2) ranges over the union of the arguments' categories. A literal argument costs nothing extra.

R-style distributions. R.DNAME(x, params…, [give_log]) is the density or mass at x (or its logarithm); R.PNAME(x, params…, [lower_tail], [log_p]) is P(X ≤ x), or P(X > x) when lower_tail is FALSE, as a logarithm when log_p is TRUE; R.QNAME(p, …) inverts it, reading p the same way (a discrete quantile is the smallest k with P(X ≤ k) ≥ p). Parameters out of range are #NUM!. CAUCHY(x, a, TRUE) is the right tail P(X > x), as in Gnumeric. Improv does not copy Gnumeric's defects: CUM_BIV_NORM_DIST is exact (Owen's formula), R.DSNORM is right for a non-zero location, R.PST honours log_p.

Math extras follow Gnumeric, within Improv's limits so every call is quick: ITHPRIME and NT_PI stop at the 10⁷-th prime, PARTITIONS at n = 4000, the Erlang functions at 10⁶ circuits, other number theory at 2⁵²; past a limit the answer is #NUM!. HDATE_MONTH numbers Tishri 0 to Elul 11 (12 and 13 for Adar I and II). ROMAN takes Excel's TRUE/FALSE forms; ARABIC accepts a leading -; ENCODEURL keeps RFC 3986's unreserved characters.

Complex numbers are text in Excel's form, "3+4i", "-j", "2.5e-3-i": suffix i or j, no spaces, the same suffix in every argument of one call. A plain number is a real complex number. Results print with 15 significant digits, and a real result is still text (IMSUM("1+i", "1-i") is "2").

Option pricing. The OPT_* functions follow Gnumeric: the first argument is "c" or "p" ("a"/"e" first for OPT_BINOMIAL, "cc"/"cp"/"pc"/"pp" for OPT_ON_OPTIONS); OPT_BINOMIAL takes at most 10,000 steps (Gnumeric 100,000: the tree is quadratic, and that took seconds). Times are in years; rates, volatilities and cost of carry are annual fractions (cost of carry is r for a stock, r − q with a dividend yield, 0 for a future, r − rf for a currency). OPT_BARRIER, OPT_TOUCH, OPT_PROB_HIT and OPT_PROB_INMONEY follow LibreOffice, with case-sensitive flags ("c"/"p", "i"/"o" knock in/out, "c"/"e" barrier watched continuously or at expiry, "f"/"d" pays foreign/domestic) and an optional Greek ("delta", "gamma", "theta", "vega", "volga", "vanna", "rho", "rhof"). Where Gnumeric 1.12's bivariate normal is wrong (some Roll–Geske–Whaley, compound, extendible and two-asset inputs), Improv returns the correct value.

IF and friends

Bonus = IF(Sales > Target, Sales * 0.1, 0)
Label = IF(Price > 15, "dear", "cheap")
Safe  = IFERROR(Revenue / Units, 0)

IF(test, then, [else]) needs a boolean test and two branches of the same type. It is lazy: where the test is true only then matters, so a missing cell or an error in else never shows (and the other way round). Without else, a false test gives no cell. Where the test is an error, the result is that error.

The result ranges over the categories of the test and both branches. If the test has fewer categories than the result (IF(Price > 15, Revenue, 0), with Price over Product and Revenue over Time×Product), the cells are those of the test joined with a branch that has the rest (here Revenue): Improv never invents coordinates. A formula where neither branch fills in the test's missing categories is a dimension error.

IFS, SWITCH, CHOOSE, IFERROR, IFNA, CLEARERROR and CLEARZERO are built on IF and behave the same way.

Missing cells: COALESCE and FILL

A formula over a missing cell has no cell, and IF, IFNA and ISNUMBER cannot change that: they only see the cells their test has. Two functions give a value where an input has none:

An    = COALESCE(Authored, Vol * 0)   -- Authored, else 0 wherever Vol has a cell
An    = FILL(Authored, 0)             -- Authored, else 0 for every Person
Merit = 0.30 * Vn + 0.25 * FILL(Authored, 0)
Best  = COALESCE(Final, Draft, Estimate, 0)

• COALESCE(a, b, …, default) has a cell wherever an argument that ranges over all of the result's categories has one, and takes the first argument with a cell there (the last argument is the default). With Authored set for 2 of 4 people and Vol for all 4, COALESCE(Authored, Vol * 0) has 4 cells.
• FILL(x, default) has a cell at every item combination of x's categories: x where it has a cell, else the default.
• The arguments' categories must nest, and the result ranges over the largest set. An argument over fewer categories (a literal, or Vol over Person under a Person × Year result) broadcasts onto the cells the others supply but adds none of its own: COALESCE(Mail, Vol) with Mail over Person × Year has Mail's cells, FILL(Mail, Vol) every Person × Year. FILL's default may not range beyond x's categories.
• The arguments must have one type (an error-only argument, NA(), takes the others'). An error is a value, so COALESCE keeps it: IFERROR replaces errors.
• FILL's cells come from the item list, which is fixed for the life of an engine: an edit to an input moves the result incrementally, but a new item takes a rebuild, as any structural change does.

Source forms: CALL and SQL

Two forms are allowed only as the whole right-hand side, and only through parse_definition (the improv define command):

Score = CALL(myfn, Price, Quantity)
Sales = SQL("SELECT product, amount FROM sales")

• CALL(fn, m1, m2, …) makes an external-function measure: fn is a registered external function, followed by zero or more argument measure names (bare or quoted). The function runs outside the dataflow and its results become input cells.
• SQL("query") takes one double-quoted query string. It describes a SQL-sourced input measure; the caller maps the result columns to dimensions.

Neither may appear inside a larger expression.

Not in the grammar

Broadcasting: the Revenue example

The canonical formula is:

Revenue[Time, Product] = Price[Product] * Quantity[Time, Product]

Price ranges over Product only; Quantity ranges over Time and Product. Their dimensions differ, so the compiler must align them before it can multiply element-wise. One dimension is a subset of the other ({Product} ⊆ {Time, Product}), so Price is broadcast over Time: the result is defined over the union, [Time, Product], and each Time reuses the matching product's price.

The rule is strict: for a binary op, one operand's dimension must be a subset of the other's. If neither is (say, Product-only added to Region-only), the compiler rejects it with a dimension mismatch rather than guessing.

Dimension projection: BY / OVER / EXCEPT

A measure reference carries a DimensionSpec with three category lists that reshape which dimensions the reference exposes:

Starting from the measure's base categories, the compiler keeps a category if it passes by (or by is empty), is not in except, and is not in over. The over set specifically marks the dimensions an enclosing aggregation collapses.

In the text syntax, Measure[Cat, …] fills by and AGG(Measure OVER Cat) fills over. Nothing fills except.

Only an aggregation collapses categories. So a bare reference whose by leaves a category out is a compile error: X = Quantity[Product], with Quantity over [Time, Product], says "Quantity[…] leaves out category Time, which only an aggregation can collapse". Inside an aggregation, the result keeps the categories that by keeps and over does not name.

Aggregation

Aggregation is expressed as a Call whose single argument is a measure reference. The reference's over list names the categories to collapse; the result is defined over the remaining categories.

Every function has a fixed FuncId, stored in saved formulas and never reused (crates/core_model/src/functions.rs). The aggregations:

For example, SUM(Revenue OVER Time) takes Revenue[Time, Product] and collapses Time, producing a per-product total Revenue[Product]. In the compiler this becomes an Aggregate plan node grouped by the surviving categories (Product), with func = FuncId(1).

AVERAGE divides the sum by the count of contributing cells; MIN and MAX take the extremum. An aggregation's argument must be numeric, except AND, OR and XOR, which take booleans.

Type and dimension checking

Compiling a formula (improv_engine::compiler::compile_formula) runs two passes:

1. infer — walks the AST, resolving each measure reference against the model's metadata and computing every subexpression's value type and dimension. It rejects type errors (e.g. multiplying non-numbers, Not on a number) and structural errors (dimensions that cannot be broadcast).
2. build_plan — lowers the typed tree to a PlanNode graph, inserting a Join where operand dimensions differ (to broadcast) and an Aggregate node for each aggregation call.

The result is an operator plan that maps directly onto differential-dataflow operators — see Architecture.

Scope today

The engine evaluates input-measure references, literals (standalone or as operands), unary negation and NOT, the arithmetic, logical and comparison operators, dimension-aligning joins, aggregations (several measures, parameters, WHERE, windows, per-item results such as RANK, lookups, list results with INTO), LET and LAMBDA, the 681 built-in functions of the Function Reference (math, rounding, text, dates, statistics and distributions, financial, engineering), the lazy IF family, positions and neighbours (POSITION, PREV, NEXT), recurrences, bounded fixed points (FIXPOINT), typed error values, non-numeric (Text, Boolean, DateTime) values, and derived measures that reference other derived measures.

External functions use the CALL(...) definition form and are evaluated host-side by improv_extfn. Python, R, Julia and Pure run in a sandboxed subprocess; Wasm runs in-process. SQL-sourced measures use SQL("...").

Gaps:

• no EXCEPT on a plain reference (only OVER ALL EXCEPT … inside an aggregation);
• a window or per-item reduction takes one OVER category;
• TEXTSPLIT takes no row delimiter; LINEST with several x's refuses collinear x's (#NUM!) rather than dropping them as Excel does;
• named LAMBDAs are defined with improv define (no GUI editor yet);
• no MMULT or LINSOLVE function: a matrix product is a join and a sum (see Matrices); FORECAST.ETS.CONFINT is #N/A for seasonal models (LibreOffice's interval is a random simulation);
• NETWORKDAYS and WORKDAY take no holiday list yet.

Function Reference

Every built-in function, by category. Names are case-insensitive; [x] is optional ([x=1]: 1 if omitted), … repeats the arguments before it, x OVER T is reduced over a category and INTO K lays a list result along one. Positions are 1-based. An error argument (#DIV/0!, #N/A, …) makes the result that error, except in the functions that test for errors. See The Formula Language for operators, types and dimensions.

Aggregations

Written F(Measure OVER Category): collapse one category. Each also has a scalar form over its arguments, listed under its category.

Logical

IF and the functions built on it evaluate only the branch they choose, so an error or missing cell in the other branch does not matter.

Information and errors

Math and trigonometry

Angles are in radians.

Rounding

Rounding is decimal: ROUND(2.675, 2) is 2.68.

Text

Lengths and positions count characters, not bytes.

Date and time

Dates are date-time values (UTC, millisecond precision). A number given where a date is wanted is a spreadsheet serial date (1 = 1900-01-01).

Dimensional

Functions of a cell's position in a category, and the ordered (previous/next, running) forms.

Statistical

Financial

Rates are per period; cash flows are in item order along their OVER category.

Engineering

Complex numbers are text, "3+4i" (suffix i or j); base conversions use 10-digit two's complement for negatives.

The Desktop GUI

improv-gui is the egui/eframe desktop front-end, styled after the original NeXTSTEP Lotus Improv: NeXT's four-level grayscale (no color anywhere, a gray selection), flat controls with 1 px black outlines, worksheet windows with NeXT title bars on a dark gray workspace, white grid cells, a formula list in each worksheet window, a floating application menu, on-grid category tiles for pivoting, a model browser window and an Info panel.

Run it (from the Nix dev shell, which provides the GUI runtime libraries):

bash docs/demo/sample-model.sh sample.db
nix develop -c cargo run -p improv_gui -- sample.db

Pivoting by dragging the Region tile, paging, editing a Quantity cell while the Revenue worksheet recomputes, selecting a range for its Sum, and adding a formula. Recorded by docs/demo/gui-movie.sh.

The pivot grid

The window has five regions:

• Application menu (floating, top left) — NeXTSTEP's vertical menu. Drag its black Improv title bar to move it. An item marked with a triangle opens a submenu to its right; click it again, press Escape or click elsewhere to close it. Info ▸ Info Panel… shows or hides the Info panel; File ▸ Save saves the model, Revert to Saved reloads it from the store (the way out of a save conflict), and Import/Export CSV… opens the CSV wizard; Edit has Undo and Redo; Worksheet has Pivot, Add Matrix, Remove Matrix and Save View; View has Model Browser, which shows or hides the model browser, then lists the saved views, with a check on the current one, and picking one switches the workspace to it; Graph ▸ Show Chart toggles the chart; Help ▸ Functions… (also F1) opens the function help; Hide minimizes and Quit closes the window. Format, Print and Services, and New, Open, Save As and Close in the File menu, are not built yet and draw grayed out. Key equivalents, shown at the right of their item, take Ctrl (Cmd on macOS): s save, z undo, Z (Shift+Z) or y redo, h hide, q quit. They don't fire while a text field has focus.
• Model browser (window, bottom left of the workspace) — titled <file> - Model. It leads with a white list of saved views, one Name - Worksheet row each with a worksheet icon: click a row to select it and read its description below (measure, categories, pages); double-click to open it. Under that, a name field and Save view save the current canvas. Collapsed below are Categories (with their items) and Measures (each labeled input or formula at the right; click one to select it). Its close box hides it; View ▸ Model Browser brings it back.
• Worksheet windows (center) — the dark gray workspace holds one window per matrix, titled <matrix> - Worksheet - <file>. Drag a title bar to move a window and its bottom bar to resize it (the left third drags the bottom-left corner, the right third the bottom-right). Clicking a window makes it key (black title bar) and gives its matrix the keyboard. With more than one matrix open, each window's close box removes its matrix. Worksheet ▸ Add Matrix opens another window, and Save View records every window's place and size. A fresh window opens right of the menu, sized to its grid.
• Pivot grid (in each worksheet window) — the measure projected onto the current axes. Here Revenue is shown with Product on columns, Time on rows, and Region paged. The category tiles are dark-gray chips, placed as in NeXT Improv: page tiles top-left, each above a white item field (click it to pick the page shown; [ / ] and PageUp / PageDown step it too), column tiles top-right, row tiles bottom-left beside the scroller. Drag a tile to another strip to re-pivot without touching the formula (the strips light up as drop targets only while you drag), or right-click it and choose Move to Rows / Columns / Pages. The same menu filters the category: uncheck an item to hide it from this worksheet, or choose Show all; a filtered tile reads Name*. Cells are white with thin black rules; the selection and its row and column headers turn gray. Click a cell to select it; double-click it (or press Enter / F2) to edit, Enter to commit, Esc to cancel. Input cells carry a faint underline; hover a derived cell to see its formula. Arrows (or h j k l) move the cursor, and n / Shift+n show the next or previous measure. Shift+arrows, Shift+click or a drag select a range, and the status bar shows its Sum.
• Formula list (bottom of each worksheet window) — every formula, numbered, with a Calc button above and a checkbox that enables it. Click a row to select its measure; the selected row becomes an editor: Enter commits (re-typechecks and recomputes), Esc reverts. Type Name = formula on the last line and press Enter to add a measure. A formula that fails, in either editor, stays as typed with the fault underlined (see Formula errors).
• Info panel (window, top right of the workspace, closed at start) — opened by Info ▸ Info Panel…: the selected measure's id, kind, value type, dimensions, dependencies, and formula. Its close box closes it.
• Status bar (bottom) — the last action's outcome (saved model, recalculated, undo, added Margin, or an error) on the left, cleared after 5 seconds, and the selection's Sum on the right.

The native window title reads Improv — <file> (Untitled in memory), with a trailing • while the model has edits that are not saved: any edit of an in-memory model, or a model whose last autosave failed.

Function help

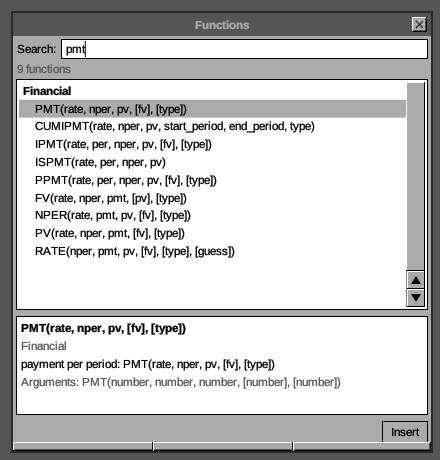

Help ▸ Functions…, or F1 from anywhere (a formula edit included), opens the Functions window at the workspace's right: a search line, the matching functions grouped by category with their signatures, and the selected one's details. The search matches names, aliases and descriptions, best first (pmt finds PMT, then IPMT, PPMT, …; payment finds them by description). Up and Down move the selection. The details show the signature with the parameter names (PMT(rate, nper, pv, [fv], [type]), [optional], … repeating), the category and aliases, the description, and the argument types. Insert, a double-click or Enter puts NAME( into the formula you were editing (the selected row's, else the Name = formula line), at the caret, and returns the keyboard to it.

Autocomplete

Both formula editors complete as you type. Start a name (PM, Qua, or a quoted 'Unit) and a list drops under the edit: matching functions with their signatures and a dimmed one-line description, then the model's measures and categories, at most eight. Up and Down move the selection; Tab or Enter accepts it, Esc closes the list. With the list closed, Enter commits the formula as before. Accepting a function writes NAME( with the caret after the (; a measure or category named with spaces is quoted for you ('Unit Cost').

While the caret is at the end of the text, the rest of the selected name and its parameters trail it in light gray (PM shows T(rate, nper, pv, [fv], [type])). Inside a call the parameters still to give trail it: after PMT(0.05, they read nper, pv, [fv], [type]). A tooltip over the edit shows the signature with the argument the caret is in bold and underlined, the description and the category.

Formula errors

When a formula fails, the place it fails is underlined in the editor, and under the row are the message and, dimmed, why:

• an unknown measure or category: did you mean Price?, the nearest names in the model (a misspelled function's suggestion is in the message itself: unknown function: PMTT; did you mean PMT?);
• the wrong number of arguments: the call's name is underlined, the message spells the parameters, and the hint says what is off, missing pv: 2 given;
• a ( never closed: that ( is underlined, ( opened here is never closed: add );
• an aggregation without OVER: its form, IRR(values OVER T, [guess=0.1]).

A type or dimension error has no position, so the editor underlines the first function or measure the message names (in Quantity + LEN(Price), LEN). A row whose saved formula no longer compiles shows its error the same way. Editing the text clears the mark.

Stacked axes

Drag the Region tile from the top-left pages strip onto the bottom row strip and the row axis becomes the stacked product of Time × Region:

Each Time group (2024Q1, 2024Q2, …) now expands into its Region rows (North / South), with the outer Time label printed once per group. Any number of categories can stack on either axis; the grid renders the full Cartesian product, and rows are virtualized so a stacked axis of millions of lines stays responsive.

Incremental recalculation

Editing an input cell propagates as a delta through differential dataflow — only the touched cells and their dependents recompute. The same behavior on the CLI:

A model in Postgres

The GUI opens a model stored in Postgres from its URL, improv-gui 'postgres://me@127.0.0.1/sales?sslmode=disable&model=plan'. Input measures bound to a table show that table's rows, and editing a cell updates the row. Here the price of Q1 Widget was changed in SQL, and the GUI shows the recomputed revenue (1200):

Recording the movie and screenshots

docs/demo/gui-movie.sh rebuilds the demo model, runs the GUI on a headless X server and records the movie above with ffmpeg, driving it with xdotool. scripts/gui-shot.sh takes the screenshot the CI compares against its golden image.

Improv in Postgres (pg_improv)

pg_improv brings Improv's models to data that already lives in Postgres. Your tables stay the source of truth for the data; the structure — the categories, measures and formulas — is an Improv model stored in the improv schema; the results of every derived measure land in ordinary tables (improv_<model>.<measure>) that any SQL client can read, index, GRANT or replicate. The same model opens in the desktop GUI.

Five-minute tour

# postgresql.conf (then restart)
shared_preload_libraries = 'pg_improv'
wal_level = logical
improv.database = 'sales'

CREATE EXTENSION pg_improv;
CREATE TABLE sales (quarter text, product text, price float8, qty float8,
                    PRIMARY KEY (quarter, product));
INSERT INTO sales VALUES ('Q1','Widget',10,100), ('Q1','Gadget',20,30),
                         ('Q2','Widget',10,200), ('Q2','Gadget',20,60);

SELECT improv.create_model('plan');
SELECT improv.bind_category('plan', 'Time',    'sales', 'quarter');
SELECT improv.bind_category('plan', 'Product', 'sales', 'product');
SELECT improv.bind_measure ('plan', 'Price',    'sales', 'price');
SELECT improv.bind_measure ('plan', 'Quantity', 'sales', 'qty');
SELECT improv.define('plan', 'Revenue = Price * Quantity');
SELECT improv.define('plan', 'Total = SUM(Revenue OVER Time)');

SELECT * FROM improv_plan.revenue;     -- kept current from here on

improv-gui "postgres://me@localhost/sales?model=plan"

A migration can re-run improv.define('plan', 'Revenue = …', replace => true): the same formula changes nothing (no version bump, no row written), and a new one recomputes the measure and its dependents in the same transaction, writing only the rows whose value changed. It is an ERROR, naming the dependent, when the new formula would change the type a dependent reads. improv.drop_measure('plan', 'Total') drops a measure and its result table (an input's binding), and refuses while another measure references it.

A named LAMBDA is defined the same way and called by any formula of the model:

SELECT improv.define('merit', 'LOGNORM = LAMBDA(x, c, LN1P(x) / LN1P(MAX(x OVER c)))');
SELECT improv.define('merit', 'An = LOGNORM(Authored, Person)');

c is a category parameter: the call passes a category. The lambda lives in improv.lambda. Redefining it with replace => true recomputes every measure that calls it, as redefining a measure does; improv.drop_measure('merit', 'LOGNORM') drops it once nothing calls it. The GUI shares the table, so a lambda defined in either place is called from the other.

The GUI shows the model as worksheet windows. Editing a formula there redefines it in Postgres; editing an input cell updates the bound row of sales; everyone's SQL view of improv_plan.revenue follows.

Ways to keep results current

Transactions. In trigger and commit modes, and with improv.recalc(), the results change inside the writer's transaction: other sessions see them only once it commits, and ROLLBACK, an error or ROLLBACK TO SAVEPOINT undo them with the change. trigger recomputes after every write statement, so the writer reads its own new results. commit recomputes once, just before COMMIT, so a read earlier in the transaction sees the old results (call improv.recalc('plan') there to read your writes). In logical mode the results follow the commit in the worker's own transaction, and an aborted write never reaches them at all, because logical decoding carries committed transactions only. A batch's results and the slot's position commit together, so a crash neither loses nor doubles a change.

Switch with SELECT improv.set_sync_mode('plan', 'commit') (or 'logical', 'trigger', 'manual'). Entering trigger or commit mode recomputes once. commit mode needs pg_improv in shared_preload_libraries (or session_preload_libraries), because the hooks that notice a write must be in every backend; set_sync_mode refuses it otherwise. A recompute that fails at COMMIT rolls the transaction back with an error naming the model. improv.recalc('plan') works in every mode, and improv.recalc('plan', ARRAY['Price']) recomputes only what depends on Price. improv.what_if('plan', '[{"measure":"Price","coord":{"Time":"Q1","Product":"Widget"},"value":12}]') returns the derived cells that would change, writing nothing. Its value column is jsonb: a number, true/false, a string, or a date as an RFC 3339 string, and an edit's "value" takes the same forms. improv.status('plan') shows the mode and, in logical mode, the slot's lag and how the worker applied its batches: incremental_applies counts the batches it fed to the live engine, rebuilds its full reloads. On an append-only fact table rebuilds stays put while incremental_applies grows.

Several rows per coordinate

A fact table often has many rows per coordinate (one per order, say). Bind the measure with an aggregate and each coordinate's rows are folded into one input cell: improv.bind_measure('plan', 'Amount', 'orders', 'amount', agg => 'sum') (also avg, min, max, count, and count_distinct, SQL's count(DISTINCT value_col); over a bool column, min and max are SQL's bool_and and bool_or). Without agg, two rows on one coordinate are an error. An aggregated measure is read-only from the GUI: a save that edits one of its cells fails, so change the rows in SQL.

Value types

A measure's type comes from its column: numbers (int*, float*, numeric), bool, text (text, varchar, char) and dates (date, timestamp, timestamptz, kept to the millisecond in UTC). A derived measure has the type of its formula, so improv.define('plan', 'Pricey = Price > 15') makes improv_plan.pricey a boolean column. Result tables' value columns are double precision, boolean, text or timestamptz. Other column types are refused by bind_measure. A derived measure with no dimensions (MaxVol = MAX(Vol OVER Person) over a measure of Person alone) gets a one-row result table with just the value column; it has no row while the formula has no cell. Logical and trigger sync follow a table's row changes, so in those modes only tables bind; a view binds in manual mode (refresh with improv.recalc()).

Choosing: use logical for busy tables (writers stay fast; measured at 100k cells: 8 ms per UPDATE and its results visible ~50 ms later, vs ~1.1 s with a trigger). Use trigger when a writer must read derived results in its own transaction. Use commit when results must commit with the write but a transaction makes many writes (100 one-row updates in one transaction at 10k cells: 82 ms, against 6.6 s in trigger mode), or when you can't put triggers on the tables. Use recalc after bulk loads or inside migrations.

Functions written in Improv's language

LANGUAGE improv lets any role write a SQL function as an Improv formula:

CREATE FUNCTION bonus(sales float8, target float8) RETURNS float8
  LANGUAGE improv IMMUTABLE AS $$
    Ratio = sales / target
    MAX2(Ratio - 1, 0) * 1000
  $$;
SELECT rep, bonus(sales, target) FROM quota;

The SQL arguments are the inputs, by name; Name = expr lines define intermediate measures; the last line is the result. Lines may be the DSL or controlled English (price times qty). The semantics are the engine's: a NULL argument gives NULL wherever the result depends on it, and an error value (#DIV/0! from a division by zero, …) is NULL, or an ERROR with improv.raise_errors = on. Aggregations need categories, so SUM(x OVER Time) is rejected; put it in a model. A call costs about 0.14 µs for a one-line body and 0.24 µs for bonus above. See crates/pg_improv/README.md for the types and rules.

Upgrades and backups

pg_improv supports Postgres 15–18. To upgrade, install the new release, restart Postgres, then run ALTER EXTENSION pg_improv UPDATE. pg_dump keeps the models and their results. A restored database's worker makes a new replication slot and catches up with one recompute.

Durability

In logical mode the worker writes a batch of results and advances its slot in one transaction, so after a crash or pg_terminate_backend it re-reads and re-applies; nothing is lost or counted twice, and rolled-back writes never appear. A slot retains WAL until confirmed, so set max_slot_wal_keep_size and watch improv.status(model).lag_bytes.

See crates/pg_improv/README.md for the full SQL API, limits (improv.max_cells), and the benchmark table.

A family's finances in Postgres (pg_improv)

This chapter walks through a complete example: one family's books for January to June 2026, kept in ordinary Postgres tables, with four Improv models on top that reconcile the bank statements, track the budget, add up net worth, and project the savings goals. The files are in crates/pg_improv/examples/family-finance/ and crates/pg_improv/tests/finance.sh runs them end to end and checks the numbers below.

crates/pg_improv/tests/finance.sh       # scratch cluster on port 55460, ~10 s
KEEP=1 crates/pg_improv/tests/finance.sh  # leave it running to explore
psql -h ~/pgi-finance -p 55460 -U improv family

Or, in a database of your own (with pg_improv preloaded, see Improv in Postgres):

psql -d family -f schema.sql -f data.sql -f model.sql -f queries.sql

The family

Dana (software engineer, W-2) and Sam (teacher, W-2, plus a design consulting business paid on 1099s) and their kids Maya (10) and Leo (6). They have:

• Bank accounts: joint checking, a joint savings account that holds three sinking funds, a tax-reserve savings account for the consulting income, and a high-yield savings rainy-day fund.
• Foreign currency: a euro checking account in Germany, plus euro and yen cash, converted to dollars at month-end rates.
• Two credit cards, paid in full by autopay.
• Retirement: Dana's 401(k) with an employer match, Dana's rollover traditional IRA, Sam's Roth IRA, and a family health savings account.
• College: a 529 plan for each child.
• Investing: a joint brokerage account and a crypto wallet (BTC, ETH), held as units and valued at each month's price.
• Property and debt: a house with a mortgage (interest, principal and escrow), a financed SUV with a car loan, and a paid-off sedan.

The schema at a glance

schema.sql creates schema finance. The tables fall into five groups:

Money is numeric(14,2) in the account's own currency. Signs follow the household: a deposit is positive, a charge negative, so a credit card, loan or mortgage has a negative balance (money owed). Banks report those as a positive "balance owed", and account.balance_sign = -1 says how to compare the two. Every table has a primary key, foreign keys and CHECKs (for example income.net_deposit must equal gross minus every withholding and deferral), and every table has a COMMENT.

There are 17 budget envelopes: housing, utilities, groceries, transport, childcare, kids' activities, healthcare, insurance, subscriptions, dining, travel and fun, gifts, giving, debt payments, estimated taxes, savings, and bank fees. Each is essential, discretionary, savings, tax or fees.

What Improv does, and what SQL does

Improv's formulas compute over categories: SUM(Actual OVER Month) and Price * Units. When this example was written they had no IF, no POWER, no "previous month", and a result had to keep at least one dimension, so it handles those in SQL. Improv now has all three (IF, ^ / POWER, PREV and running windows such as SUM(x OVER Month[FIRST..THIS]); see The Formula Language); the example still shows the SQL route, which works on every Improv version. A formula over a missing cell still has no cell unless it says otherwise with COALESCE or FILL (IFERROR covers errors, not missing cells):

All four models bind tables, not views. pg_improv can bind a view only in manual mode: logical mode needs REPLICA IDENTITY and trigger mode needs transition tables, and Postgres gives a view neither. So the running balances are a trigger-maintained table, and that is also what lets the logical sync below see a new transaction.

Model 1: reconciliation (recon)

Question: does each account's ledger match the bank statement, month by month?

Inputs, per (Month, Account): LedgerBalance and ClearedBalance (the running sums from ledger_month), FxRate, TransfersHome (that month's transfer legs in dollars), StatementBalance (from statement); per Account: BalanceSign.

BankBalance       = StatementBalance * BalanceSign      -- a card's "$439.02 owed" is -439.02
Difference        = BankBalance - ClearedBalance        -- the bank has not seen pending charges
Reconciled        = ABS(Difference) < 0.005
Pending           = LedgerBalance - ClearedBalance
DifferenceHome    = Difference * FxRate                 -- euros in dollars
Unreconciled      = MIN2(FLOOR(ABS(Difference) * 200), 1)   -- 1 if off by >= half a cent
UnreconciledCount = SUM(Unreconciled OVER Account)      -- per Month
AbsDifferenceHome = ABS(DifferenceHome)
OffByHome         = SUM(AbsDifferenceHome OVER Account)
TransfersNet      = SUM(TransfersHome OVER Account)     -- both legs present: 0
TransfersBalanced = ABS(TransfersNet) < 0.005

Unreconciled is the IF workaround: FLOOR(|d| × 200) is at least 1 exactly when |d| ≥ 0.005, and MIN2(…, 1) caps it, so it is a 0/1 count.

data.sql plants five problems in June. The model finds four of them and lists the fifth as pending:

== 1. Which accounts do not reconcile in June, and by how much?
   account   | bank_says | ledger_cleared | difference | difference_usd | pending
-------------+-----------+----------------+------------+----------------+---------
 amex        |   -439.02 |       -1963.14 |    1524.12 |        1524.12 | -412.00
 visa        |  -1668.40 |       -1754.80 |      86.40 |          86.40 |    0.00
 checking    |  21402.97 |       21427.97 |     -25.00 |         -25.00 |    0.00
 eur_account |   9183.10 |        9170.60 |      12.50 |          13.50 |    0.00

== 2. Reconciliation summary by month (accounts off, total off in USD, transfers in balance?)
  month  | accounts_off | off_by_usd | transfers_net | transfers_balanced
---------+--------------+------------+---------------+--------------------
 2026-05 |            0 |       0.00 |          0.00 | t
 2026-06 |            4 |    1649.02 |      -1524.12 | f

Reading it:

• Amex, +1524.12: a missing transaction. The June autopay was entered on the checking side only. The card's leg is missing, so the ledger still owes the May balance (1524.12), and June's transfers do not net to zero (TransfersNet = -1524.12).
• Visa, +86.40: a duplicate. The June 20 Corner Market charge was entered twice.
• Checking, -25.00: a fee nobody entered. The bank charged an outgoing wire fee.
• Euro account, +12.50 EUR ($13.50): an FX difference. The family entered EUR 1,000 for the June wire; the bank's conversion credited EUR 1,012.50.
• Amex pending -412.00: a hotel hold that has not posted. It is in the ledger as pending, the bank does not show it yet, and Difference compares cleared balances, so it is not counted as a problem.

Reconciling a statement

Enter the bank's closing balance (positive for money owed), then look at improv_recon.difference for that month. Fix the ledger and the results update on their own. tests/finance.sh commits these four fixes:

BEGIN;
INSERT INTO finance.txn (txn_date, account_id, amount, payee, transfer_id)   -- the missing leg
VALUES ('2026-06-25', 'amex', 1524.12, 'Autopay, thank you', 'pay-amex-2026-06');
DELETE FROM finance.txn WHERE memo = 'entered twice';                         -- the duplicate
INSERT INTO finance.txn (txn_date, account_id, amount, payee, memo)           -- the FX difference
VALUES ('2026-06-05', 'eur_account', 12.50, 'Sparkasse Rhein', 'FX difference on the June wire');
INSERT INTO finance.txn (txn_date, account_id, amount, payee, envelope_id)    -- the fee
VALUES ('2026-06-05', 'checking', -25.00, 'Harbor CU: outgoing wire fee', 'bank_fees');
COMMIT;

Nothing calls improv.recalc. The txn triggers refresh ledger_month in the same transaction. The pg_improv worker decodes the commit and applies the changed rows. Within about 0.2 s every June Difference is 0, UnreconciledCount is 0 and TransfersBalanced is true. The budget and net-worth models follow too: groceries lose the duplicate, bank fees gain the wire fee, and net worth rises by $1,599.02. The pending hotel hold is still pending.

Model 2: cash flow and budget (budget)

Question: where did the money go, against the plan?

Outflow[Month, Envelope] is the ledger itself, bound with agg => 'sum': every txn row with an envelope is summed into its (month, envelope) cell. Rows with no envelope (income, opening balances, the receiving leg of a transfer) have a NULL dimension and are skipped. Budget comes from the budget table, IsSpending (0 for the savings envelope) from envelope, and income from the income paystubs (again agg => 'sum', per (Month, Source)).

Actual        = NEG(Outflow)                  -- spending is negative in the ledger
Variance      = Actual - Budget               -- > 0: overspent
OverBudget    = Actual > Budget               -- a boolean result
YtdActual     = SUM(Actual OVER Month)        -- per Envelope, January to date
YtdBudget     = SUM(Budget OVER Month)
YtdVariance   = YtdActual - YtdBudget
Spending      = SUM(SpendingPart OVER Envelope)   -- SpendingPart = Actual * IsSpending
SavedFromChecking = SUM(SavedPart OVER Envelope)  -- SavedPart = Actual * (1 - IsSpending)
EmployerMatch = MIN2(K401, Gross * MatchCap) * MatchRate
PayrollSaved  = SUM(PayrollSavedPart OVER Source) -- 401(k) + health savings deferrals + match
SavingsRate   = (SavedFromChecking + PayrollSaved) / TotalGross
Unallocated   = TotalNetPay - Spending - SavedFromChecking
SetAsideDue   = Gross * SetAsideRate              -- 30% of consulting income
SetAsideGap   = SetAsideDue - SetAside

The employer match is a formula on pay: 50% of the 401(k) deferral, counting deferrals only up to 6% of gross. Dana defers 10% of $6,500 a paycheck, so the match counts $780 of the $1,300 and adds $390 a month.

== 4. Where are we over budget in June?
 envelope  | budget  | actual  | over_by
-----------+---------+---------+---------
 fun       |  150.00 |  460.00 |  310.00
 childcare | 1200.00 | 1420.00 |  220.00
 groceries |  850.00 | 1050.11 |  200.11
 dining    |  250.00 |  309.05 |   59.05
 gifts     |   50.00 |   89.00 |   39.00
 utilities |  480.00 |  503.69 |   23.69

== 6. Income, saving and the savings rate, by month
  month  |  gross   | net_pay  | spending | saved_from_checking | saved_by_payroll | savings_rate_pct | left_over
---------+----------+----------+----------+---------------------+------------------+------------------+-----------
 2026-05 | 22600.00 | 16152.40 |  7907.48 |             4000.00 |          1990.00 |             26.5 |   4244.92
 2026-06 | 20400.00 | 13952.40 |  9455.65 |             4000.00 |          1990.00 |             29.4 |    496.75

== 8. Is enough of the consulting income in the tax reserve?
  month  |   source   |   due   |  moved  | short_by
---------+------------+---------+---------+----------
 2026-05 | sam_design | 1260.00 | 1000.00 |   260.00

June fun is over because of the $412 hotel hold. Groceries include the duplicate charge until it is fixed. Year to date (query 5), fun is $1,440 over, mostly next summer's flights.

Setting budgets

A budget is one row per (month, envelope) in finance.budget. To change one, update the row and the variances follow:

UPDATE finance.budget SET amount = 300 WHERE month = '2026-06' AND envelope_id = 'dining';

A new envelope needs an envelope row and its budget rows. Spending lands in it as soon as txn rows carry its id.

Model 3: net worth (networth)

Question: what do we own minus what do we owe, each month, in dollars?

Each account has exactly one of a ledger balance, holdings or a valuation. A formula over a missing cell has no cell, so the model totals each kind separately and adds the totals:

LedgerValue   = Balance * Fx                         -- euros and yen at the month-end rate
PositionValue = Units * Price                        -- per (Month, Account, Security)
HoldingsValue = SUM(PositionValue OVER Security)     -- 401(k), IRAs, health savings, 529s, brokerage, crypto
OwnedPart     = LedgerValue * (1 + Sign) / 2         -- Sign is 1 (owned) or -1 (owed)
OwedPart      = NEG(LedgerValue) * (1 - Sign) / 2
Cash          = SUM(OwnedPart OVER Account)
Investments   = SUM(HoldingsValue OVER Account)
Property      = SUM(Valuation OVER Account)          -- house and cars
Liabilities   = SUM(OwedPart OVER Account)           -- cards, car loan, mortgage
Assets        = Cash + Investments + Property
NetWorth      = Assets - Liabilities
DebtToAssets  = Liabilities / Assets

Crypto is just another holding: BTC and ETH units times their month-end price. The mortgage balance falls by each payment's principal (a transfer from checking). Interest and escrow are spending in the housing envelope.

== 9. Net worth trend (USD)
  month  | cash  | investments | property | liabilities | net_worth | change | debt_to_assets_pct
---------+-------+-------------+----------+-------------+-----------+--------+--------------------
 2026-01 | 50765 |      403326 |   586800 |      337733 |    703158 |        |               32.4
 2026-02 | 52969 |      412645 |   587800 |      336384 |    717030 |  13871 |               31.9
 2026-03 | 59195 |      409315 |   588800 |      335185 |    722124 |   5094 |               31.7
 2026-04 | 61837 |      427766 |   591300 |      333925 |    746978 |  24854 |               30.9
 2026-05 | 68524 |      443452 |   593300 |      334084 |    771191 |  24213 |               30.2
 2026-06 | 69278 |      455097 |   594300 |      333594 |    785081 |  13890 |               29.8

(The change column is SQL's lag() over the result table. Improv has no previous-period reference, but a result table is an ordinary table.)

Model 4: planning (plan)

Question: at today's pace, will each goal be met, and if not, how much more a month would it take?

There are seven goals in savings_goal, each with a target date on a June 30:

current_balance is the goal's share of its accounts on June 30. model.sql reads it back from the net-worth model's result tables with an ordinary UPDATE … FROM improv_networth.holdingsvalue.

goal_horizon holds, for each goal and each plan anniversary up to its target date, Growth = (1 + r/12)^n and Annuity = ((1 + r/12)^n − 1) / (r/12) (monthly compounding, end-of-month contributions), and IsTargetYear (1 on the target date). SQL computes these; today (1 + Rate/12)^N in a formula does it too.

EssentialPart     = Budget * IsEssential
EssentialBudget   = SUM(EssentialPart OVER Envelope)       -- per Month
WeightedEssential = EssentialBudget * Weight               -- Weight = 1/6 per month
MonthlyEssentials = SUM(WeightedEssential OVER Month)      -- the average, per Goal
Target            = TargetAmount + MonthsOfCover * MonthlyEssentials

Payroll           = DeferralRate * Salary / 12             -- 401(k) deferrals
EmployerMatch     = MIN2(DeferralRate, MatchCap) * MatchRate * Salary / 12
MonthlySaving     = Contribution + Payroll + EmployerMatch

Projected         = Current * Growth + MonthlySaving * Annuity   -- per (Goal, Year)
ProjectedAtTarget = SUM(TargetPart OVER Year)              -- TargetPart = Projected * IsTargetYear
AnnuityAtTarget   = SUM(AnnuityPart OVER Year)
Shortfall         = MAX2(Target - ProjectedAtTarget, 0)
OnTrack           = ProjectedAtTarget >= Target
ExtraMonthly      = Shortfall / AnnuityAtTarget            -- the saving that closes the gap
RequiredMonthly   = MonthlySaving + ExtraMonthly
Progress          = Projected / Target

The rainy-day target is a formula over the budget: six times the average monthly essential budget (housing, utilities, groceries, transport, childcare, healthcare, insurance and the car payment), $5,503.30, so $33,019.80. Raise childcare's budget and the target moves. IsTargetYear picks the target year's projection out of the series without an IF. MAX2(…, 0) floors the shortfall.

== 11. Are we on track for each goal?
      goal       | target_date | today  | monthly | target  | projected | on_track | shortfall
-----------------+-------------+--------+---------+---------+-----------+----------+-----------
 rainy_day       | 2027-06-30  |  24839 |  500.00 |   33020 |     31962 | f        |      1057
 vacation        | 2027-06-30  |   5706 |  250.00 |    9500 |      8706 | f        |       794
 house_projects  | 2028-06-30  |   2282 |   50.00 |    8000 |      3482 | f        |      4518
 car_replacement | 2030-06-30  |   3424 |  100.00 |   24000 |      8224 | f        |     15776
 college_maya    | 2034-06-30  |  35980 |  250.00 |  120000 |     83066 | f        |     36934
 college_leo     | 2037-06-30  |  18766 |  250.00 |  120000 |     76365 | f        |     43635
 retirement      | 2048-06-30  | 306515 | 2190.00 | 2500000 |   2339882 | f        |    160118

== 12. How much more to save each month to close each shortfall?
      goal       | saving_now | add_monthly | required_monthly
-----------------+------------+-------------+------------------
 car_replacement |     100.00 |      328.68 |           428.68
 college_maya    |     250.00 |      313.69 |           563.69
 retirement      |    2190.00 |      293.14 |          2483.14
 college_leo     |     250.00 |      248.63 |           498.63
 house_projects  |      50.00 |      188.23 |           238.23
 rainy_day       |     500.00 |       86.51 |           586.51
 vacation        |     250.00 |       66.17 |           316.17

Reading the planning tables

• improv_plan.projected (Goal, Year): the balance at each anniversary. Query 13 lists Maya's 529 year by year, reaching 69% of its target by 2034.
• improv_plan.shortfall and improv_plan.ontrack (Goal): the gap at the target date.
• improv_plan.extramonthly (Goal): how much more to save each month, starting now, to close it. The sedan fund needs the most: $328.68 more a month.

The vacation line checks by hand: $5,705.98 today + 12 × $250 = $8,705.98, $794.02 short, closed by $794.02 / 12 = $66.17 more a month.

Changing goals

Goals are rows. Change a target, contribution or return in savings_goal and the projections follow. Changing a return or a target date changes the growth factors, so run SELECT finance.refresh_goal_horizon() afterwards.

What-if

improv.what_if evaluates the model with some inputs changed, in memory, and returns only the derived cells that would differ. It writes nothing.

SELECT measure, coord ->> 'Goal' AS goal, value
  FROM improv.what_if('plan',
       '[{"measure": "DeferralRate", "coord": {"Goal": "retirement"}, "value": 0.15}]')
 WHERE measure IN ('Payroll', 'EmployerMatch', 'MonthlySaving',
                   'ProjectedAtTarget', 'Shortfall', 'ExtraMonthly', 'OnTrack');

== 14. What if Dana raises the 401(k) deferral from 10% to 15%? (writes nothing)
      measure      |    goal    |  would_be
-------------------+------------+------------
 ExtraMonthly      | retirement | 0.00
 MonthlySaving     | retirement | 2840.00
 OnTrack           | retirement | true
 Payroll           | retirement | 1950.00
 ProjectedAtTarget | retirement | 2694928.57
 Shortfall         | retirement | 0.00

EmployerMatch is missing from the answer because it does not change: the match stops at 6% of pay. The extra $650 a month closes the whole $160,118 retirement gap.

Cutting dining out by $100 a month and putting it toward the trip is a change to the vacation goal's contribution (the plan model does not see dining):

== 15. What if we cut dining out by $100 a month and save it for the trip?
      measure      |   goal   | would_be
-------------------+----------+----------
 ExtraMonthly      | vacation | 0.00
 MonthlySaving     | vacation | 350.00
 OnTrack           | vacation | true
 ProjectedAtTarget | vacation | 9905.98
 Shortfall         | vacation | 0.00

what_if returns jsonb values, so OnTrack comes back as true, not a number. Cast with care (value::numeric fails on a boolean).

Keeping it current

model.sql builds each model in manual mode and runs improv.recalc once, so the results are complete when the script returns. Its last statement switches every model to logical. From then on the background worker keeps them current from committed changes to the bound tables. The test measures 0.1 to 0.2 s from commit to visible result.

Things to know

• Results are double precision. A difference of 1524.12 may read 1524.1200000000001. Round for display (round(value::numeric, 2)), and compare with a tolerance, as Reconciled does.
• Only derived measures get result tables. Read an input (a bound column such as Budget) from its own table.
• Fill zeros, don't leave cells out. savings_goal has every column for every goal (0 where it does not apply), because Contribution + Payroll has no cell for a goal with no Payroll.

Files

Improv in DuckDB

The improv DuckDB extension brings Improv's formula language and its multidimensional models to DuckDB: evaluate any built-in function from SQL, look functions up, and run a model over a table or a query, getting back one row per computed cell.

Where pg_improv keeps a model in Postgres and keeps its results current as the data changes, the DuckDB extension is stateless. improv(source, model) reads the source, computes, and returns rows, the way an analytical query does. Nothing is stored and there is nothing to keep in sync.

Install

INSTALL improv FROM community;   -- once it is in the community registry
LOAD improv;

A local build (see crates/duckdb_improv/README.md) is unsigned:

duckdb -unsigned -c "LOAD 'crates/duckdb_improv/build/release/improv.duckdb_extension'; ..."

One binary loads into DuckDB v1.5.6 and later, v2.0 included.

Formulas: improv_calc

SELECT improv_calc('ROUND(PMT(rate/12, n, -pv), 2)',
                   json_object('rate', 0.06, 'n', 360, 'pv', 200000));
-- 1199.1

SELECT loan_id,
       improv_calc('ROUND(PMT(rate/12, years*12, -principal), 2)',
                   json_object('rate', rate, 'years', years, 'principal', principal)) AS payment
FROM loans;

improv_calc(formula [, inputs]) evaluates one formula in Improv's formula language: operators, IF and its family, LET, LAMBDA, and the scalar forms of the built-in functions (math, rounding, statistics, financial, text, dates, engineering). An aggregation over a category (SUM(x OVER Time)) needs a model; use improv(...) for that.

• inputs is a JSON object: json_object('x', col, ...) or a literal like '{"x": 2}'. Each key is a name the formula can use. Its JSON type is the input's type: number, boolean or text (DuckDB's json_object writes a DATE as text). A JSON null is a missing input, and a result that depends on it is NULL: improv_calc('x + 1', '{"x": null}') is NULL, while IF(TRUE, 5, x) is still 5.
• The result is a DOUBLE: a number; a boolean as 1 or 0; a date as its spreadsheet serial number (days since 1899-12-30). Text and error values (1/0 is #DIV/0!) are NULL.
• A formula that does not parse or type-check, or inputs that are not a JSON object, fail the query with the reason: improv_calc: parse error at 2: unexpected end of input.
• A leading = is allowed ('=ROUND(2.675, 2)').
• Each formula is compiled once per shape of inputs (names and types) and cached, so running one formula over a million rows parses it once.

improv_calc_text(formula [, inputs]) is the same but returns VARCHAR: text results as they are, numbers to 15 significant digits, dates in RFC 3339, and errors as their codes.

SELECT improv_calc_text('1/0');                                     -- #DIV/0!
SELECT improv_calc_text('UPPER(name) & "!"', json_object('name', 'ada'));  -- ADA!
SELECT improv_calc_text('TEXT(EDATE(DATE(2024, 1, 31), 1), "yyyy-mm-dd")'); -- 2024-02-29

Function help: improv_functions

SELECT name, signature, description FROM improv_functions() WHERE category = 'financial';
SELECT name, signature FROM improv_functions(query := 'payment');

One row per built-in function (681): name, category (math, financial, text, datetime, …), signature (PMT(rate, nper, pv, [fv], [type])), returns (number | boolean | text | date | any), description and aliases (other spellings, or NULL). With query :=, only the functions whose name or description matches, best match first.

Models: improv(source, model)

CREATE TABLE sales(year INTEGER, product VARCHAR, price DECIMAL(10,2), qty INTEGER);
INSERT INTO sales VALUES
  (2024, 'WidgetA', 10, 100), (2024, 'WidgetB', 20, 50),
  (2025, 'WidgetA', 11, 70), (2025, 'WidgetA', 11, 50), (2025, 'WidgetB', 20, 40);

SELECT * FROM improv('sales', '
  category Time = year
  category Product = product
  input Price = price max
  input Quantity = qty sum
  Revenue = Price * Quantity
  Share = Revenue / SUM(Revenue OVER Product)
  Growth = Revenue - PREV(Revenue, Time, 1, 0)
');

These are the values improv eval gives for the same model (the extension's test suite checks that).

source is a table or view name, or a query: anything starting with SELECT, WITH, FROM or VALUES, or in parentheses.

SELECT * FROM improv('SELECT * FROM sales WHERE year >= 2025', '...');
SELECT * FROM improv('read_csv(''sales.csv'')', '...');  -- not a query: use FROM
SELECT * FROM improv('FROM read_csv(''sales.csv'')', '...');

model has one item per line. Blank lines and lines starting with # or -- are ignored, and keywords are case-insensitive.

category <Name> = <column>
input    <Name> = <column> [sum | avg | min | max | count]
<Name> = <formula>

• category makes a dimension from a column. Its items are the column's distinct non-NULL values in the column's own order: numbers numerically, dates chronologically, text alphabetically. PREV and NEXT follow that order. Each category becomes a result column of that name.
• input is a measure read from a column, over every category. Two source rows on the same coordinate are an error unless the line names an aggregation, which then combines them (qty sum above adds 2025's two WidgetA rows). Numeric columns of any type are numbers, BOOLEAN is a boolean and VARCHAR is text; count counts any type.
• Name = formula is a derived measure: any formula over the inputs, the derived measures above it, and itself through PREV (a running total is Balance = PREV(Balance, Time, 1, 0) + Deposits). Aggregations across a category (SUM(Revenue OVER Product)), RANK, running forms and the rest of the formula language all work.
• A column name with spaces or capitals goes in double quotes: category Time = "Fiscal Year". DuckDB matches column names case-insensitively.
• A source row with a NULL category value is skipped; a NULL input value is no cell.

The result has one row per derived cell: measures in declaration order, each measure's cells in item order. Its columns are measure, then one VARCHAR column per category (NULL where the measure does not range over that category: SUM(x OVER Product) has no Product), then value DOUBLE (NULL for text, booleans and errors) and value_text (every value as text; errors as #DIV/0!, …). It is an ordinary table expression, so you can filter, join and pivot it:

PIVOT (SELECT * FROM improv('sales', '...') WHERE measure = 'Revenue')
  ON "Time" USING first(value) GROUP BY "Product";

Errors fail the query and name the line:

improv: model line 2: Quantity: two source rows have the coordinate (2025, WidgetA); add an aggregation (sum, avg, min, max, count or count_distinct) to the input line
improv: model line 1: the source has no column "yr" (it has: year, product, price, qty)
improv: model line 7: definition: parse error at 12: unknown measure: Revnue

Notes

• The source is read through the extension's own connections to the same database (a small pool, IMPROV_DUCKDB_POOL, default one per core up to 8). It sees committed data: not rows the calling transaction has written but not committed, and not the caller's TEMP tables. Materialize those into a regular table first.
• The whole result is computed at bind time, so it suits models up to a few million cells. For a model that stays live as its data changes, use pg_improv or improv stream.
• Enum and date inputs are not supported in models yet. A date column works as a category.

The HTTP Server

improv-server serves a JSON HTTP API over one model store:

improv-server model.db 127.0.0.1:3000   # or IMPROV_ADDR=...; model defaults to improv.db
improv-server 'postgres://me@127.0.0.1/sales?sslmode=disable&model=plan'

Endpoints

Values written through the API are numbers.

Authentication

Every route except /health needs Authorization: Bearer <token> once a token is configured. Tokens are compared in constant time.

Writes

A write must name an existing input measure and a coordinate with exactly one item for each of the measure's categories; values must be finite. Anything else is a 400. Writes are serialized, so concurrent writers do not lose updates. The server caches the loaded model. If another process (the GUI, the CLI, SQL on a Postgres model) saved since the server loaded it, the server's next write is refused with 409 Conflict, writing nothing, and the cache is dropped, so a retry reloads and succeeds. Reads serve the cached model until then.

Limits

The server speaks HTTP/1.1 only.

Internal errors return {"error": "internal error", "request_id": N}; the detail is logged to stderr under the same id.

Refresh scheduler

The scheduler refreshes CALL (external-function) measures in the background. Refreshing runs code stored in the model, so it is off by default.

The scheduler runs a function only if its digest is listed in the allowlist file, one lowercase hex digest per line (# comments allowed). Other functions are skipped, and a warning is logged. The digest is the SHA-256 of the function name, a NUL byte and the body:

printf '%s\0%s' double 'result = args[0] * 2' | sha256sum

Scheduler refreshes always run in the Restricted sandbox, whatever the function's pure flag says.

Controlled Natural Language

improv_nl_formula translates between formulas and a controlled natural language: a small, fixed, deterministic grammar — not open-English NLP. There are no LLMs and no external services. The same grammar parses a sentence into a formula and renders a formula back into a sentence.

Two functions form the surface:

• parse_nl_formula(ctx, text) → Formula
• describe_formula(ctx, formula) → String

Both take an NlContext built from a Model, which resolves measure and category names (case-insensitively) to ids.

The grammar

sentence   = [ subject copula ] expr [ "." ]
subject    = measure-name          (* parsed, then discarded *)
copula     = "equals" | "is"

expr       = term { ("plus" | "+" | "minus" | "-") term }
term       = factor { ("times" | "*" | "divided" "by" | "/") factor }
factor     = number
           | agg-call
           | measure-ref
           | "(" expr ")"

agg-call   = ["the"] ("sum" | "average" | "min" | "max") "of" measure-ref
measure-ref= measure-name { dim-phrase }
dim-phrase = "over" cat-list                 (* aggregate over  -> DimensionSpec.over *)
           | ("by" | "for" "each") cat-list  (* keep / group by -> DimensionSpec.by   *)
cat-list   = category-name { "and" category-name }

Subject and copula are discarded

A sentence may open with <measure> equals or <measure> is, but the parser strips it: the returned Formula is only the right-hand-side expression. The target measure is a property of where the formula is stored, not of the expression tree. So both of these parse to the same formula:

Revenue equals price times quantity.
price times quantity

The copula is only stripped when one actually follows the first word, so a bare expression like price times quantity (no copula) still parses correctly.

Operators

Precedence is the usual arithmetic one: times/divided by bind tighter than plus/minus. So price times quantity plus revenue parses as (price * quantity) + revenue. Parentheses override precedence.

Aggregation phrases

An aggregation reads as the <func> of <measure-ref> (the the is optional). The function words map to the same function ids as the formula language:

Dimension phrases

A dimension phrase binds to the nearest preceding measure reference and fills in that reference's DimensionSpec:

• over <categories> sets over — the categories an enclosing aggregation collapses.
• by <categories> or for each <categories> sets by — the categories to keep / group by.

Categories in a list are joined with and, e.g. over time and region.

The except field of a DimensionSpec is not expressible in this grammar.

A full example

the sum of revenue over time for each product

parses to a SUM call over a Revenue reference whose over = [Time] and by = [Product] — i.e. total revenue per product, summed across years.

Round-trip and rendering

describe_formula is the inverse rendering. It uses a fixed vocabulary:

• Operators render as their words (plus, minus, times, divided by).
• Aggregations render as the <func> of ....
• A reference's over renders as over ...; its by renders as for each ... (not by).

So the example above renders back as:

the sum of Revenue over Time for each Product

Because describe uses for each for the by list and the grammar accepts both by and for each, describe → parse is a stable round trip for the supported constructs. Comparison and logical operators have best-effort English renderings (is greater than, and, or, ...) so describe never fails, but they are outside the parseable surface. The same holds for two more renderings: unary minus describes as negative X, and a non-aggregating function call as itself (ROUND(Price, 2), IF(…)); neither parses back, so write those in the formula DSL.

Architecture & Design

Improv is a small Cargo workspace. Each crate has one job and depends only on the ones below it.

Crate layout

The computation pipeline

A derived measure's formula is compiled through a typed intermediate form into an operator plan, which is then built into a differential-dataflow graph and run. Input cells are fed as data; computed values come back out.

graph TD
    A["Model<br/>(measures + input cells)"] --> B["Formula (AST)"]
    B --> C["infer<br/>type + dimension inference"]
    C --> D["TypedExpr"]
    D --> E["build_plan<br/>insert Join / Aggregate"]
    E --> F["PlanNode graph"]
    F --> G["dataflow builder"]
    G --> H["differential-dataflow<br/>InputSession -> operators -> reduce"]
    A -. "typed input cells" .-> H
    H --> I["computed values<br/>measure -> (coord -> CellValue)"]

The two compiler passes (infer, build_plan) live in engine::compiler; the plan node types in engine::plan; the dataflow builder and the one-shot evaluate entry point in engine::dataflow.

PlanNode kinds map onto differential-dataflow operators:

A final reduce collapses each key to a single value before results are captured. Derived measures are built in dependency order, so one derived measure can feed another; a cycle is rejected.

Why differential dataflow

Differential dataflow is a hard requirement of the design: the engine computes incrementally, so an edit propagates as a delta and only the affected cells recompute. The engine's spike (dd_revenue_is_incremental) proves this: after computing Revenue = Price * Quantity, it changes one Quantity cell and confirms the matching Revenue cell updates while an unaffected cell does not recompute.

The version pin is deliberate and delicate — differential-dataflow = "=0.13.0" with timely = "=0.13.0". Newer DD pulls a timely line that does not compile on the project's rustc; an older DD compiles but aborts on a merge_batcher bug under debug assertions. 0.13.0 is the pair that both compiles and runs. Do not bump it without re-validating.

The live engine

evaluate runs a model once and returns. Interactive users need more: change one cell and see what it affects, without a rebuild. That is engine::session::Engine.

Engine::new(model, targets) compiles the plans for the target derived measures, then starts a dataflow on its own thread (timely's execute_directly, one worker). Every input measure gets an InputSession. The model's input cells are fed in at time 0. new returns the handle and the first Snapshot.

After that the engine is fed edits:

#![allow(unused)]
fn main() {
pub struct Edit {
    pub measure: MeasureId,
    pub coord: CoordKey,
    pub value: Option<CellValue>, // None removes the cell
}
}

apply(edits) sends a batch over a channel. The worker retracts each cell's old value, inserts the new one, advances time by one, and steps the dataflow until the probe passes that time. Only the deltas flow, so only the affected cells recompute. set and clear are one-edit shortcuts. The reply is the new Snapshot.

A Snapshot is Arc<HashMap<MeasureId, Arc<MeasureValues>>>, where MeasureValues is HashMap<CoordKey, CellValue>. It is copy-on-write: cloning one is a reference-count bump, and measures an edit did not change are shared with the previous snapshot. A changed measure is copied whole only while a caller still holds the old snapshot.

The structure is fixed when the engine is built. Changing a formula or adding a measure means building a new Engine. Dropping the handle stops the thread.

session::input_cell(type, value) is the one rule for which model values are engine cells. A value counts only when it matches its measure's declared type: Number, Boolean, Text or DateTime. Text in a number measure, or an error value, is no cell. Engine::new uses it to pick the seed cells, and the GUI uses it to turn a cell edit into an Edit, so an edit and a rebuild agree.

Users of the live engine:

The coordinate / value encoding for dataflow

Timely 0.13 needs dataflow data to be Clone + 'static, and data that crosses an exchange channel to also be Send + Sync and serde Serialize + Deserialize. Differential dataflow adds Ord + Debug, and keys must be hashable. The model's Coordinate is a dynamic-arity BTreeMap and Value holds an f64, which is neither Ord nor Hash. The engine encodes at the dataflow boundary:

• Key — a coordinate becomes a sorted Vec<(u32, u32)> of (category_id, item_id) pairs (CoordKey). The BTreeMap already iterates in sorted order, so the encoding is deterministic and Ord + Hash. encode_coord / decode_coord convert at the edge; project_key narrows a key to a subset of categories (used for joins and group-bys).

• Value — the CellValue enum:

  Variant	Holds
  Num(u64)	an f64 as f64::to_bits(); decoded with f64::from_bits
  Bool(bool)	a boolean
  Text(String)	text
  Date(i64)	a UTC timestamp, milliseconds since the Unix epoch
  Err(u8)	an error, by kind, so errors propagate through operators

  CellValue::from_model_value converts a model Value; Enum becomes a Num. Arithmetic happens after decoding, inside map and reduce closures.

• Diff — the differential multiplicity R stays isize.

This encoding is what cleared the project's Phase 1 viability gate.

Stores and front ends

Every front end opens a model through improv_store::Store::open. A path opens a Mentat file; a postgres://…?model=<name> URL opens that model in Postgres. Both backends have the same methods and the same conflict error, so the GUI, TUI, CLI and server work on either without knowing which. See Storage & Persistence.

pg_improv runs the same engine inside Postgres. A model's categories and measures are bound to columns of ordinary tables, and each derived measure is written to a result table (improv_<model>.<measure>) that any SQL client can read. Three sync modes keep the results current: logical (the default; a background worker follows the commit through logical decoding), trigger (statement triggers recompute inside the writer's transaction), and manual (results change when you call improv.recalc). See Improv in Postgres.

Determinism

The core engine is deterministic and unit/property tested. The Time × Product revenue model (with results 1000 / 1000 / 1200 / 1600) is the canonical fixture checked by engine's tests, and each crate carries its own test module.

Formal verification

A few integer kernels of the engine are proven correct with Verus, not just tested. They live in crates/verified inside verus! { ... } blocks: a spec fn states what the kernel means and the executable function ensures it. Under plain cargo the specs are erased, and the engine calls these functions, so the proven code is the code that runs. scripts/verify.sh (and a CI job) checks the proofs with the pinned Verus release.

What is proven:

What is tested instead: everything with floating point. Verus does not reason about f64 arithmetic, so the kernels take and return integers and the engine does the float range checks and truncation before calling them. The numeric functions are checked against LibreOffice and Gnumeric goldens (crates/engine/tests/data), and invariants (parse ⇄ print, save ⇄ load, key encoding) by property tests.

Storage & Persistence

improv_storage_mentat persists a Model to an embedded, SQLite-backed Mentat store — a Datomic-style datom database. Categories, items, measures, and input cells are stored as first-class entities, so the model is queryable, not an opaque blob.

ModelStore::open(path) opens (or creates) a store; pass "" for an in-memory database. Opening transacts the schema (a no-op after the first time). save_model writes the model; load_model rebuilds it by querying.

Front ends do not use ModelStore directly. They open improv_store::Store, which can also open a model kept in Postgres (see The Postgres store).

The datom schema

The schema is defined as an EDN transaction in improv_storage_mentat::schema::SCHEMA_EDN. It declares these attributes.

Category

Item

Measure

Cell (an input value)

View (a saved pivot layout)

Meta (one entity per store)

Maps with no natural per-entity shape are stored as JSON on a singleton.

How a model maps to datoms

• Native attributes. Ids, names, kinds, and value types map straight to native datom value types (long, string, boolean, double, ref).

• Formulas and coordinates are JSON. A Formula AST and a Coordinate are serialized with serde to JSON strings and stored in :measure/formula and :cell/coord. This is why a derived measure's formula survives a round trip even though the datom layer has no notion of an expression tree. Views, the SQL source of a measure, and the meta maps are JSON too.

• Category order. :measure/categories is a set, so the store loses its order. :measure/category-order keeps it. On load the categories are sorted by that list. A category the list does not name sorts after those it does.

• Typed cell values. A cell writes exactly one of the three typed value attributes, chosen by the value's type:

  Value	Attribute
  Number, Enum	:cell/value-number
  Boolean	:cell/value-boolean
  Text, DateTime (RFC 3339 text)	:cell/value-text

  An Error value cannot be saved as an input; the save fails with Integrity.

• Cell identity. Each cell is keyed by a synthetic string "<measure-id>::<coord-json>" on :cell/key, which is unique/identity. Re-saving the same measure+coordinate updates the cell in place.

Save

save_model is one SQLite transaction. It calls Store::begin_transaction once, makes several transact calls inside it, and calls commit once at the end. Later steps can use lookup-refs (for example :item/category, :measure/categories, :cell/measure) to entities that earlier steps wrote but have not committed yet. If any step fails, the transaction is dropped without a commit and nothing is written.

The steps run in this order:

Each step is split into transact calls of at most MAX_DATOMS_PER_TRANSACT (2000) datoms. Mentat aborts the process (a hard assert!, not an error) on a transact carrying 5461 or more datoms for one attribute queue. The chunks share the one transaction, so the save is still all-or-nothing.

A single entity cannot be split. A measure carries one :measure/categories datom per category, so a measure with more than 5460 categories is refused up front with StoreError::Integrity, before anything is written.

Cells are diffed

Before writing cells, the save reads every stored cell and compares:

• a cell whose stored value is unchanged is skipped (no datoms);
• a cell whose value changed is re-asserted;
• a value left under another type's attribute (the cell held text and now holds a number, say) is retracted;
• a stored cell the model no longer has is retracted whole.

After a save, the store's cells are exactly model.inputs.

What is not retracted

Only cells are diffed. Categories, items, measures and views that the model no longer has are not retracted; they stay in the store and come back on the next load. Stale :measure/categories refs are not retracted either: re-save a measure with a changed category set and the store keeps the union. A loaded model can therefore grow past the 5460-category limit without any single save having been that wide. The source marks this as a known bug (see the comments in save_model).

Optimistic concurrency

load_model records the store's high-water transaction, read live from SQLite by TX_HIGH_WATER_SQL. It is the newest transaction in the log that changed anything other than :db/txInstant, so the schema transact every open performs does not count as a write.

save_model re-reads the high-water inside its transaction. If another writer has committed since this handle loaded (or last saved), the save returns StoreError::Conflict and writes nothing. A handle that never loaded saves unconditionally. loaded_tx and set_loaded_tx carry the token between handles, for callers that open the store fresh for each save.

To recover from a conflict, read the model again. reload_model does that; it is the same as load_model. The GUI's File ▸ Revert to Saved and the TUI's R key do the same thing: they open the store, load the model with a fresh token, and rebuild the engine. The conflicting edit is lost; the other writer's changes are picked up.

Load

load_model runs Datalog queries and rebuilds the Model:

• categories, then items (each relinked to its category);
• measures: one query for the required fields, then per measure one query each for the formula (derived measures only), description, categories, category order, and SQL source;
• cells: one query per typed value attribute (three in all), each returning (measure id, coord, value) rows. The value is decoded by the owning measure's declared type. If an old store holds a cell under more than one attribute, the attribute matching the declared type wins;
• views and the meta singleton.

load_partial(measure_ids) loads the same structure, views and meta, but only the cells of measure_ids and their dependency closure (every measure reached through a derived formula or an external call's arguments). The filter is in the query. The handle remembers that closure, and its next save retracts only the closure's missing cells, so a partial model saves safely: cells of measures it never loaded stay as they are. A full load lifts the limit again.

The Postgres store

improv_store::Store is the one store type the GUI, TUI, CLI and server use. Store::open(target) looks at the target:

Both backends have the same methods: load_model, load_partial, save_model, reload_model, tx_high_water, loaded_tx, set_loaded_tx. A conflict from either backend becomes improv_store::StoreError::Conflict.

A Postgres target names one model: postgres://me@db/sales?model=plan. split_model_url removes the model parameter and passes the rest to the driver. ?model= is required; without it open fails. Opening a model name that does not exist yet creates it.

The catalog

The model is stored normalized in the improv schema. The DDL is CATALOG_SQL in crates/storage_pg/src/lib.rs:

CATALOG_SQL also creates the unique index item_name_uniq on (model_id, category_id, name) and the function improv.mint_items, which assigns ids to item names it has not seen. The pg_improv extension uses the same function.

open creates the catalog, under an advisory lock, when improv.mint_items does not exist. When the pg_improv extension is installed the function exists, so the client runs no DDL and the extension owns the tables. The extension's catalog is the same plus improv.category_binding, which records the column that supplies a bound category.

Formulas are written as JSON of the Formula AST. On load, a formula that is not JSON is parsed as formula text (Target = expr), which is what the extension's improv.define writes. Cell values are JSON scalars; dates are RFC 3339 strings.

Bound and unbound cells

A measure with a binding row lives in its fact table. Load runs SELECT dims…, value FROM rel (with GROUP BY when the binding has an agg). Dimension values map to items by name; names with no item are minted by improv.mint_items. A row with a NULL value is no cell; a row with a NULL dimension is ignored. Two rows on one coordinate of an unaggregated binding are an Integrity error. Cells of unbound measures come from improv.cell.

Load reads in one REPEATABLE READ, read-only transaction. Item minting runs after it closes, read-committed, so it sees items other clients minted. The handle keeps a snapshot of what it loaded.

Save

save_model is one transaction. It locks the model's model_version row and returns Conflict if tx moved since this handle loaded. Then it writes the diff against the snapshot:
